| Tonnage | 80 T | 72.575 t |
| Stroke Length | 3.94" | 100.08 mm |
| Shut Height | 18" | 457.2 mm |
| Bed area (Left to right) | 39.3" | 998.22 mm |
| Bed area (Front to back) | 23.6" | 599.44 mm |
| SPM min. | 60 strokes/min. | 60 strokes/min. |
| SPM max. | 120 strokes/min. | 120 strokes/min. |
| Adjustment | 3.15" | 80.01 mm |
80 ton Capacity (metric)
3.94" Stroke
13.8" Die Height over Bolster
3.15" Motorized Adjustment
39.3" LR x 23.6" FB Bed Area
21.65" LR x 17.72" FB Slide Area
60-120 VSPM
High-Torque Wet Clutch and Brake
Eccentric Shaft
Plunger Guided Ram
Heavy Duty Slide Construction
T-Slotted Ram and Bolster
T-Slotted Flanged Ram Plate
Hydraulic Over Load
Air Counterbalances
Recirculating Lube System
Wintriss Die Pro 1500

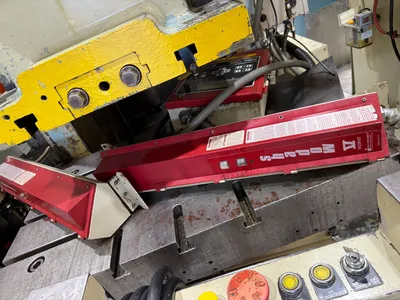

Wintriss Shadow V Light Curtains

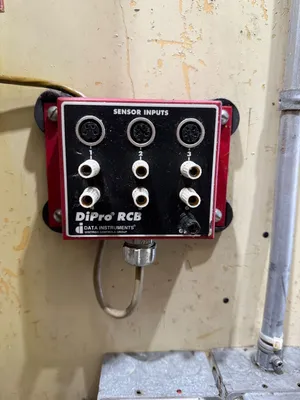

Wintriss DiPro RCB sensor inputs
6 Point Gibs
AC Inverter Drive

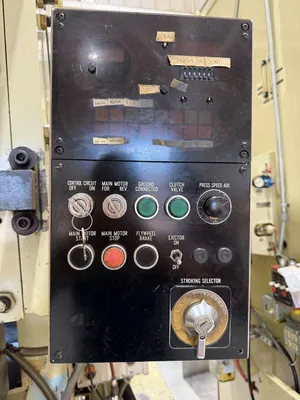

Updated Controls
Floor Standing
