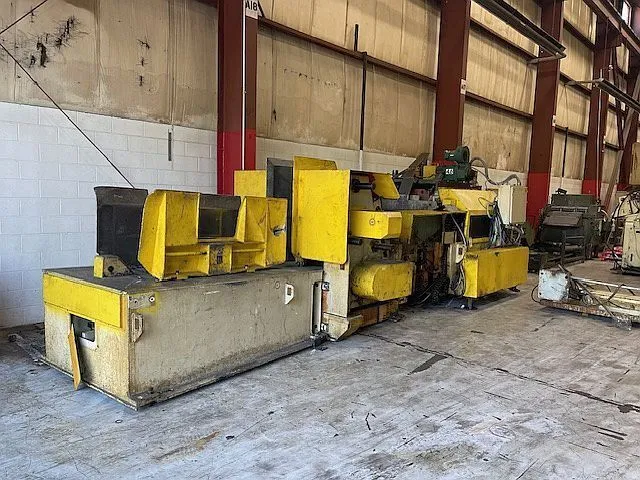

US Machines Cradle/Straightener/Feeder, Complete Line, 30" wide x 30,000 # Capacity
ConditionUsed
1 available
30" wide x 30,000 # US Machines Cradle/Straightener/Feeder, Capacity: 30" wide @ 0.150" thick material, 10" wide @ .380" thick Material, All New Electrical Controls
Coil Weight Capacity.....................30,000 #
Serial Number………………………………. 00661
Coil Width Capacity...............................30”
Stock Thickness Capacity……………………30” wide x .200” thick material
………………………………………………. 24” wide x .250” material
………………………………………………. 18” wide x 0.300” material
………………………………………………. 10” wide x 0.380” material
Coil O.D...................................72”
Power Supply………………………………. 460/3/60
Passline Height……………………………... 46” (+/- 4” up and down)
Feed Direction……………………………… Right To Left
Entry Pinch Rolls x 6" diameter
Hydraulic Pinch Roll Lift
Seven Straightening Rolls x 4" Diameter
Dial Indicators for Upper Straightening Roll Position
Rolls are fully backed up
Motorized Upper Straightening Roll Adjustment
Upper and Lower Feed Rolls
Air/Hydraulic Operated Upper Feed Roll Release and Pilot
Heavy Duty Stock Width Edge Guides
Powered Nest Rolls in Coil Cradle
Coil Restrictor Side Plates
Motorized Side Plate Adjustments
Coil Stop Peeler Threading Assist and Dekinker Assembly
Coil Storage/Load Ramp
Self Contained Hydraulic Pump Unit
Automatic Lubrication System
Powered Passline Height Adjustment
