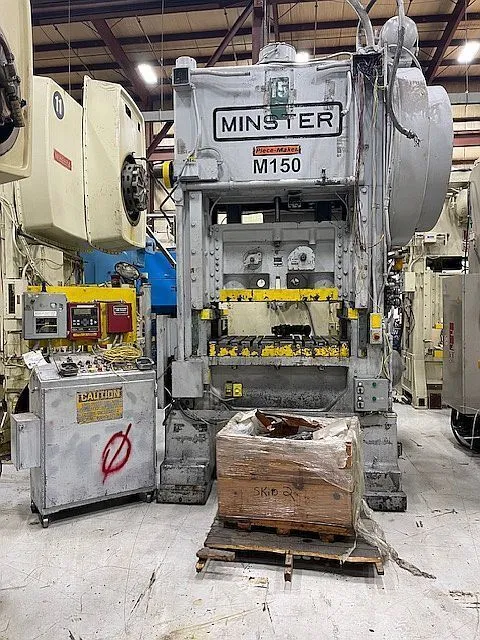

Minster 150 Ton Piecemaker Straight Side Mechanical Press, P2-150-48 model, 5" stroke, 48" x 40" bed area, 0-150 SPM
Model Number: P2-150-48
Serial Number: P2-150-24688
Bed Area: 48” x 40”
Slide Area: 48” x 23”
Stroke: 5”
Strokes per Minute: 0-150
Shut Height: 21” over bed
Slide Adjustment: 4”
Floor Standing
Air Clutch and Brake
Air Counterbalances
Monitor Flow Recirculating Lube System
T-Slotted Ram and Bolster
Free Standing Console Control
Wintriss Die Pro 1500 Die Protection
Wintriss Programmable Cam Outputs
Dual Palm Buttons
6" Thick Bolster Plate
50" Distance Between Gibs
42" Distance from Floor to Top of Bed
20" Wide Windows
Vibro Dynamic Floor Mounts
Floor Standing
Overall Height: 13' 2"
