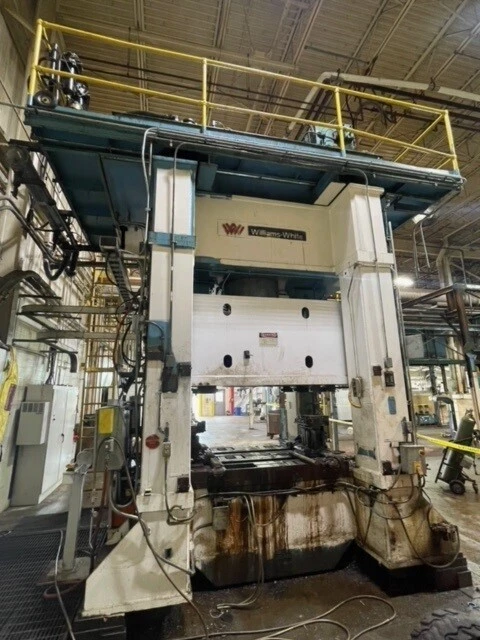

600 TON WILLIAMS & WHITE HYDRAULIC PRESS

PRESSING - 600
STRIPPING - 60
NET LIFT @ FAST OPEN - 5
ECCENTRIC LOAD CAPACITY (INCH TONS)* - 4800

DIMENSIONS (INCHES)
DAYLIGHT (OVER BED BOLSTER) - 36
STROKE OF MAIN SLIDE - 16
SHUT HEIGHT - 20
DIE SPACE (RIGHT TO LEFT x FRONT TO BACK) - 72x60
BETWEEN HOUSING (RIGHT TO LEFT x FRONT TO BACK) - 74x62
BED BOLSTER THICKNESS - 4
FLOOR TO BED BOLSTER - 45

OPERATING SPEEDS (INCHES/MIN)
FAST CLOSE - 1200
PRESSING - 20-240
STRIPPING - 25-250
FAST OPEN - 1200

MECHANICAL SPECS
FRAME TYPE - PRESTRESSED "H" FRAME HOUSING TYPE
PRESTRESS STYLE - HYD. NUTS WITH HAND PUMP
GUIDE STYLE - 8 POINT SQUARE
LUBRICATION - TRABON AUTOMATIC LUBRICATION SYSTEM

HYDRAULIC SPECS
MAIN CYLINDER QUANTITY, SIZE & TYPE - (1) 19-1/4" x 18" DIAMETER DOUBLE ACTING

SYSTEM WORKING PRESSURE - 4123 PSI

MAIN OIL RESERVOIR
LOCATION - OVERHEAD
AIR FILTRATION - 10 MICRON
