| Coil Weight Capacity | 10,000 lb | 4,535.9 kg |
| Coil Width Capacity | 26" | 660.4 mm |
| Max Stock Thickness Capacity at Full Width | 0.09" | 2.286 mm |
| Minimum Expansion Range | 20" | 508 mm |
| Maximum Expansion Range | 24" | 609.6 mm |
| Coil O.D. Capacity | 60" | 1,524 mm |
Coil Weight Capacity................10,000 #
Model………………………………………. MS20-26-7
Model Number……………………………... MR10-26S / MS-20-26-7
Year of Manufacture……………………….. 1995
Coil Width Capacity...............................26”
Stock Thickness Capacity…………........…26” wide x .090” thick material
Max. Capacity……………………................... 5” wide x 0.180” thick
Min. stock Thickness……………………....... 0.030” x 26” wide
Coil I.D. Range………………………………........ 20-24”
Coil O.D...................................................60”
Power Supply………………………………. 460/3/60
Feed Direction……………………………… Left to Right

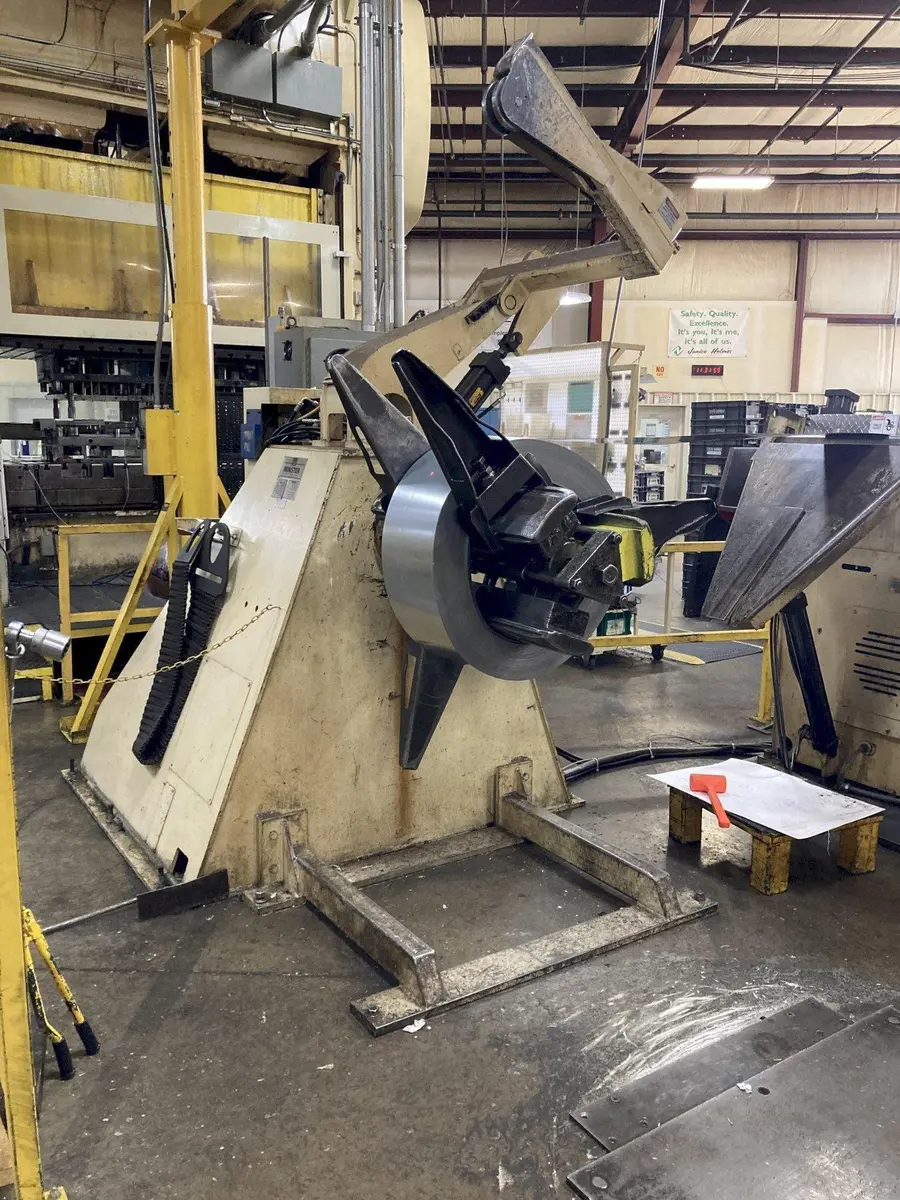

MINSTER Coil Reel Model No. MR10-26S
Three leaf mandrel
Hydraulic mandrel expansion
Air brake (adjustable tensioning)
Fail-safe brake during power off/loss
Jog drive for threading
Coil hold down arm with driven end wheel
MINSTER Powered Coil Straightener Model No. MS-20-26-7
Seven straightening rolls
Individual upper straightening roll adjustments
Individual upper roll adjustments
Pinch rolls with air-operated adjustments
Stock peeler table
Adjustable stock width edge guides
Exit cascade loop support rollers
Variable speed drive
Auto/run loop control
Operator's stations
Jog forward and reverse
