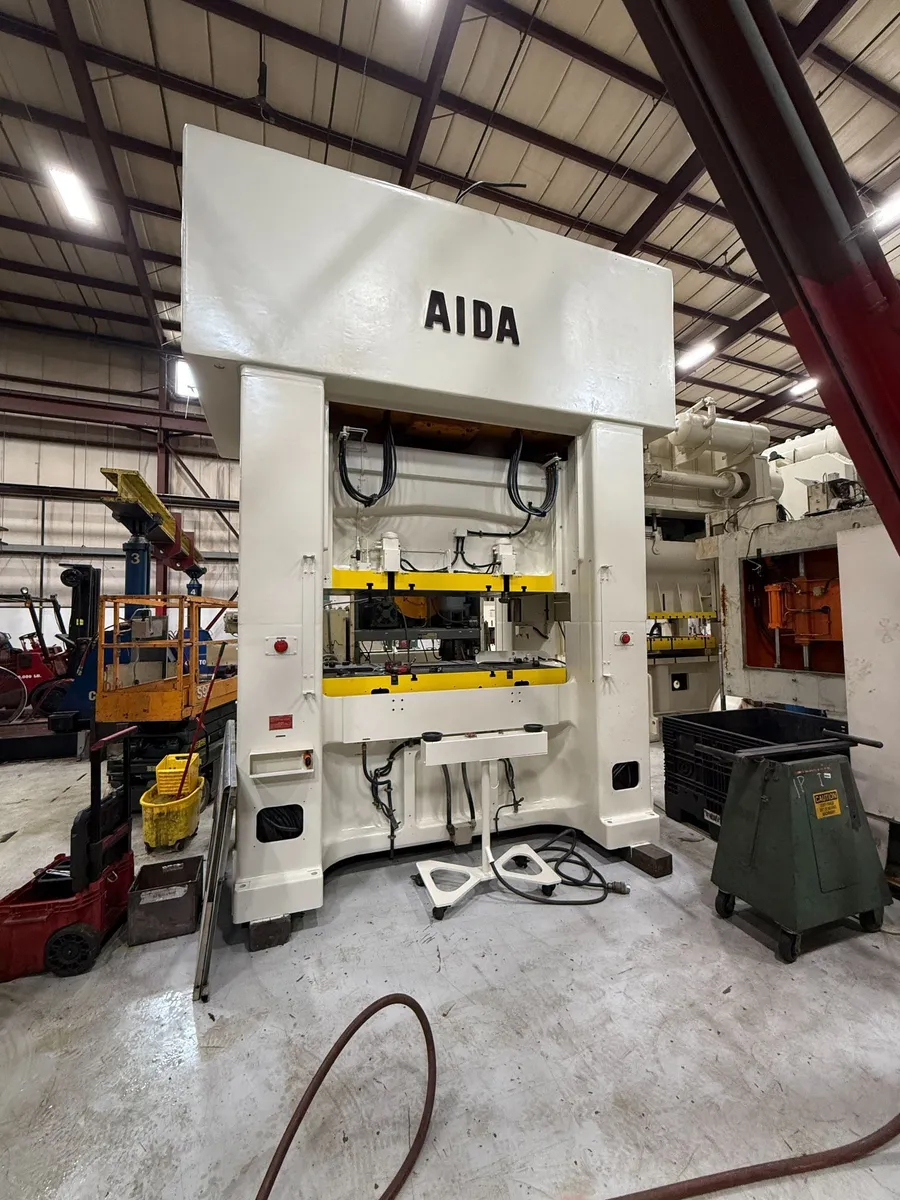

Aida 330 Ton Model#: PMX-L2-300(1), 72.8" x 39.3" bed area, 7.87" stroke, 30-80 SPM, 19.6" Shut Height, 35" wide windows
I. Mechanical Work to Be Performed prior to Shipment to Customer’s facility
A. Counterbalance Cylinders:
1. Disassemble, clean, and inspect.
2. Superb to hone cylinder, polish rod and piston, furnish new packings and seals.
3. Reassemble complete and pressure test.
B. Slide Assembly/Links:
1. Remove links and adjustment screws from slide.
2. L.H and R.H. upper connection, furnish material, machine and split. Install and fasten into link and cap. Assemble and finish bore.
3. Furnish material, machine, install and fit bushings to (2) new wrist pins.
4. Reassemble adjustment screws into nuts/housings.
5. Install links into screws and assemble wrist pin into bores.
C. Clutch/Brake Assembly:
1. Disassemble, clean, and inspect all components for wear and dimensional integrity.
2. Machine all friction plate surfaces to minimum cleanup.
3. Install all new linings on clutch and brake.
4. Set up piston/cylinders and polish diameters.
5. Furnish all new packings and seals.
6. Reassemble complete and verify stroke.
D. Flywheel Brake:
1. Disassemble, clean an inspect.
2. Lightly hone cylinder and polish piston rod.
3. Install new lining.
4. Reassemble complete, pressure test, and verify operation.
II. Load out and deliver to Rygate LLC.
III. Complete Update of Lubrication and Air system; includes a new lube pump and motor, go through metering blocks and make sure all in good operating order, replace any lines that require replacement. Update Air Filters and Regulators for counterbalances, clutch/brake, etc.. Test run to make sure everything is functioning properly.
Completion Timeline: 10-12 Weeks
Floor to top of bolster: 38"
Floor Standing
Overall Weight: 101,000#
Footprint Dimensions: 9'3" LR x 6'3" FB
Main Motor: 50 HP
Air Clutch/Brake Assembly
Air Counterbalances
Recirculating Lubrication System
Dual Ross Air Valve
Motors and Controls
Completely updated Electrical Controls
T-Slotted Bolster and Ram
Floor Standing
