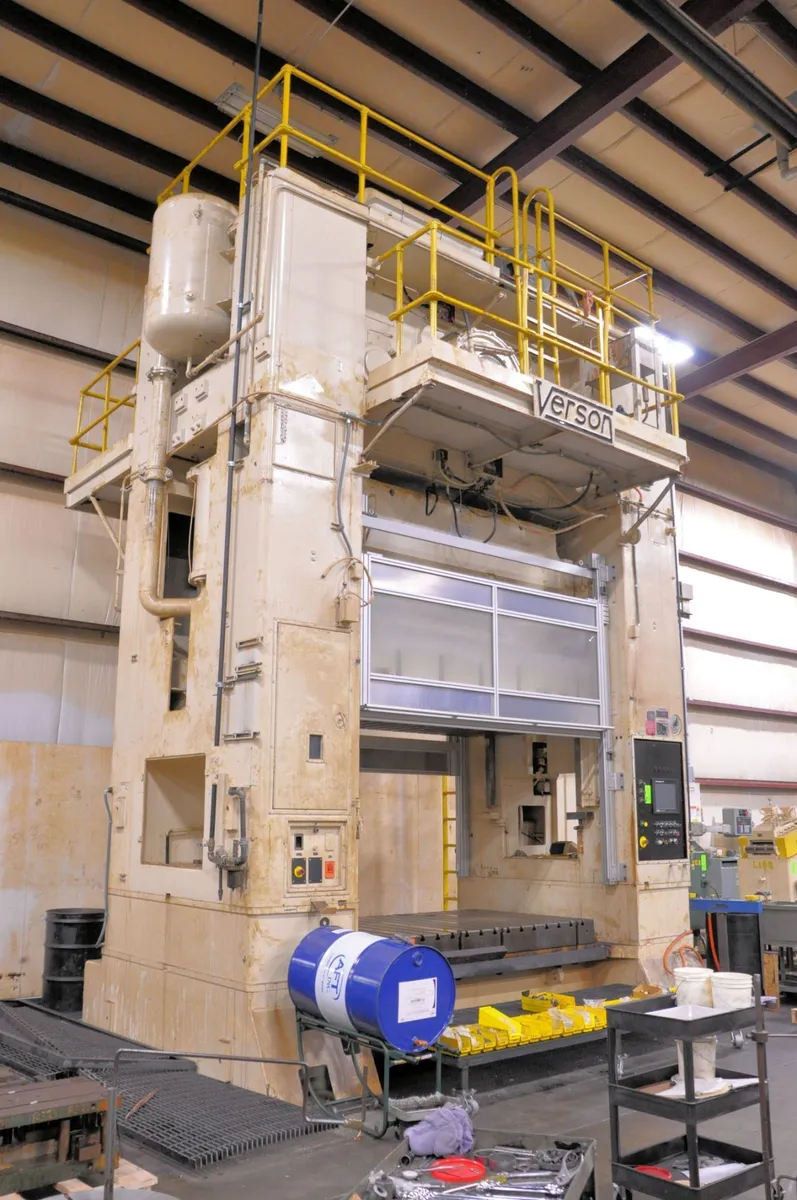

800 Ton Verson Straight Side Eccentric Geared Mechanical Press, Model# SE2-800-108-60T Completely Reconditioned with New Cieco Automator II Controller
Straight Side Mechanical Stamping Presses
Verson 800 Ton Straight Side Mechanical Press, Model#: SE2-800-108-60T, 108" x 60" bed area, 16" stroke, 20-40 SPM, 39" Shut Height over bed, 12" Slide Adjustment, 38" wide windows, Mechanically Rebuilt in 2016
| Tonnage | 800 T |
| Stroke | 16" |
| Shut Height | 39" |
| SPM | 40 strokes/min. |
| Vari Speed (Yes/No) | Yes |
| Bed W | 60" |
| Bed L | 108" |
| Crank (Single/Double) | Double |
| Air Clutch (Yes/No) | Yes |
| Slide Area | 108" x 60" |
| Slide Adjustment | 12" |
| Windows Width | 36" |
| Year of Manufacture | 1978 |
Overall Height: 23' floor to top of main motor
Floor to Top Of Bolster: 36"
Footprint Dimensions: 184" LR x 115" FB
Main Motor: 150 HP
Min. Pit Required: 54" floor to bottom of tie rod nuts
Overall Weight: 258,000#
Air Clutch and Brake assembly
Air Counterbalances
Recirculating Lubrication System
T-Slotted Bolster and Ram
Dual Ross Air Valve
Updated Cieco PLC II Press Controller
8 Point Gibbing
Motors and Controls
Motorized Ram Adjustment
Press completely REconditioned and then not used since
