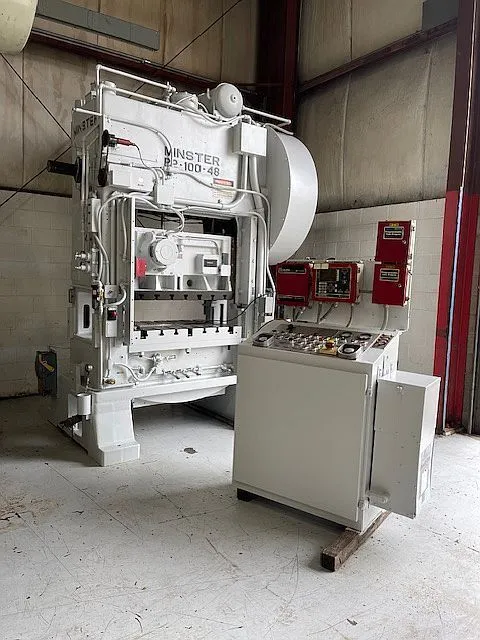

100 Ton Minster Piecemaker Straight Side High Speed Mechanical Press
ConditionUsed
1 available
Minster 100 Ton Piecemaker High-Speed Mechanical Press, Model#: P2-100-48, 48" x 31" bed, 4" stroke, 75-150 SPM, 18" Shut Height, 16" wide window
Model Number: P2-100-48
Serial Number: P2-100-21059
Bed Area: 48” x 31”
Slide Area: 46” x 19”
Stroke: 4”
Shut Height to Bed: 18” SDAU over bed
Bolster Thickness: 4”
Strokes per Minute: 75-150
Adjustment: 4”
Windows: 16” wide x 15” high
Approximate Overall Weight: 28,000 lbs
Footprint Dimension………………………...6’3”LR x 5’ FB x 11’6” Tall
Air Clutch and Brake Assembly
T-Slotted Bolster and Slide Assembly
Motor & Controls (Floor Standing Console)
Wintriss Smart Pac Control
Wintriss Resolver
Wintriss 8 Input Die Protection
Wintriss Programmable Outputs
Single/Inch/Continuous
Palm Buttons
Air Counterbalances
Minster Monitor Flow Lube System
28-CFC Minster Clutch
Variable Speed Motor
8 Point Gibbing
