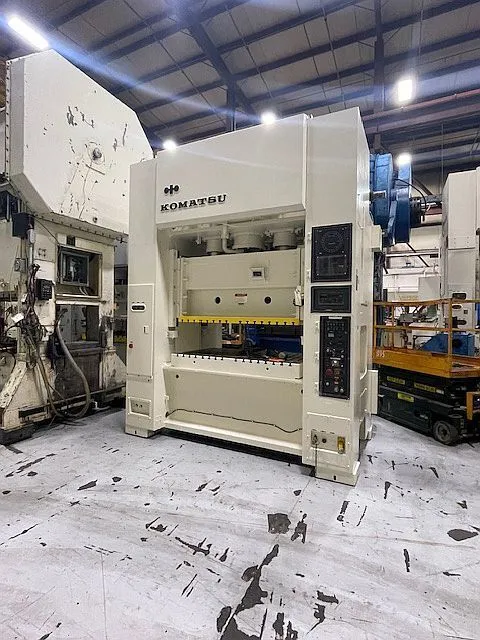

220 US Ton Komatsu Straight Side Mechanical Press

220 US Ton Komatsu Straight Side Mechanical Press

Sell Your KOMATSU E2M 200
(248)709-6723
brian@rygatellc.com
ConditionUsed
1 available
Sell Your KOMATSU E2M 200

Overview

Type:
Straight Side Mechanical Stamping Presses
Manufacturer:
KOMATSU
Model:
E2M 200
Condition:
Excellent
Year:
1988
Stock #:
710-02493
Status:
For Sale
Serial #:
10053

Description

Komatsu 220 US Ton Straight Side Mechanical Press, Model#: E2M 200, 72.8" x 43.3" bed, 5.9" stroke, 20-100 SPM, 17.7" Shut Height

Tonnage220 T199.581 t
Stroke5.9"149.86 mm
Shut Height17.7"449.58 mm
Bed area (Left to right)72.8"1,849.1 mm
Bed area (Front to back)43.3"1,099.8 mm
SPM min.20 strokes/min.20 strokes/min.
SPM max.100 strokes/min.100 strokes/min.
Adjustment3.9"99.06 mm
Windows Width25.6"650.24 mm
Dimensions70.9" x 124.8" x 13'8"70.9" x 124.8" x 13'8"
Weight65,000 #65,000 #

Capacity: 220 US Tons
Model Number: E2M200
Serial Number: 10053
Year of Manufacture: 1988
Bed Area: 72.8” x 43.3”
Slide Area: 72.8” x 35.4”
Stroke: 5.9”
Adjustment: 3.9”
Shut Height: 17.7” SDAU
Strokes per Minute: 20-100
Windows: 25.6” wide x 17.7” high
Bolster Plate: 7.1” thick T-Slotted

Overall Dimensions: 124” LR x 9’4” FB
Overall Height: 13’8” floor to highest point of press
Floor to Top of Bolster: 48”
Floor Standing

Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
T-Slots 6" Centers- Standard 1" T-Slots
8 Point Gibbing
Electrical Control Cabinet
Variable Speed Motor
Light Curtains
Motors and Controls
Komatsu Press Controls
Palm Button Stand
Hydraulic Overload Protection
Vibration Isolation Levelers
Dual Ross Air Valve
Motorized Ram Adjustment
Main Motor Fwd./Reverse
