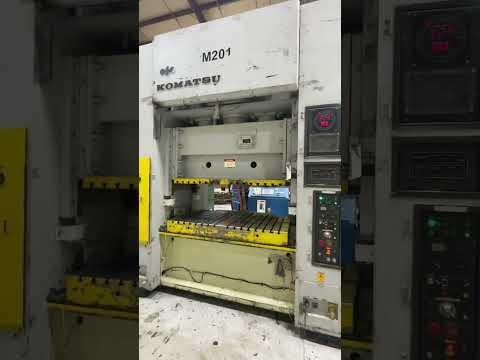

220 US Ton Komatsu Straight Side High Speed Mechanical Press

220 US Ton Komatsu Straight Side High Speed Mechanical Press

Sell Your KOMATSU E2M200
(248)709-6723
brian@rygatellc.com
ConditionUsed
1 available
Sell Your KOMATSU E2M200

Overview

Type:
Straight Side Mechanical Stamping Presses
Manufacturer:
KOMATSU
Model:
E2M200
Year:
1988
Stock #:
710-02492
Status:
For Sale
Serial #:
10051

Description

Komatsu 220 US Ton Straight Side High Speed Mechanical Press, Model: E2M 200, 72.8" x 43.3" bolster, 4.3" stroke, 60-150 SPM, 17.7" Shut Height. 25.6" wide window

Tonnage220 T199.581 t
Stroke4.3"109.22 mm
Shut Height17.7"449.58 mm
Bed area (Left to right)72.8"1,849.1 mm
Bed area (Front to back)43.3"1,099.8 mm
SPM min.60 strokes/min.60 strokes/min.
SPM max.150 strokes/min.150 strokes/min.
Adjustment3.9"99.06 mm
Windows Width25.6"650.24 mm
Dimensions124.4" x 70.9" x 13'8" tall124.4" x 70.9" x 13'8" tall
Weight65,000 #65,000 #

Capacity: 220 US Tons
Model Number: E2M200
Serial Number: 10051
Year of Manufacture: 1988
Bed Area: 72.8” x 43.3”
Slide Area: 72.8” x 35.4”
Stroke: 4.3”
Adjustment: 3.9”
Shut Height: 17.7” SDAU
Strokes per Minute: 60-150
Windows: 22” wide approx.
Bolster Plate: 7.1” thick T-Slotted
Overall Dimensions: 124.8” LR x 9’4” FB
Footprint Dimensions: 124.8” LR x 70.9” FB
Overall Height: 13’8” floor to highest point of press
Floor Standing

Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
T-Slots 6" Centers- Standard 1" T-Slots
8 Point Gibbing
Electrical Control Cabinet
Variable Speed Motor
Light Curtains
Motors and Controls
Komatsu Press Controls
Hydraulic Overload Protection
Palm Button Stand
Vibration Isolation Levelers
Dual Ross Air Valve
