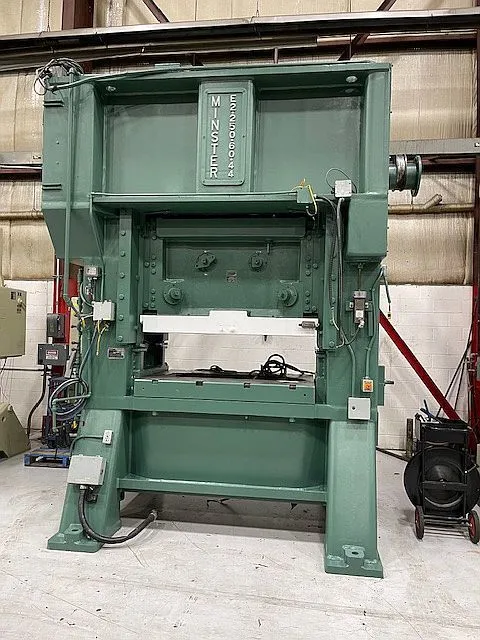

250 Ton Minster Hevistamper High Speed Mechanical Press
ConditionUsed
1 available
Minster 250 Ton Hevistamper SSDC High Speed Mechanical Press, E2-250-60-44, 2" stroke, 100-200 SPM, 20" Shut Height, Mechanically Rebuilt
Note: Includes slide assembly, clutch/brake and counterbalance rebuild. All wearable components replaced, and slide adjustment assembly completely gone through and checked out.
Note: Includes going through the entire lubrication and air system. Checking all metering blocks, and lube lines to make sure in proper working order. Check the lube pump and motor to make sure functioning properly. Go through and check out the air filters and regulators for proper functionality.
Model Number: E2-250-60-44
Serial Number: E2-250-15255
Bed Area: 60” x 44”
Slide Area: 60” x 44”
Stroke: 2”
Strokes per Minute: 100-200
Shut Height: 20” over bed
Bolster Plate: 6” thick t-slotted plate
Slide Adjustment: 6”
Windows: 22” wide x 12.5” high
Floor Standing
Air Clutch and Brake Assembly
Model#: 132-GC
Air Counterbalances
Recirculating Lube System
Dual Herion Valve
8 Point Gibbing
Floor Standing
Motors and Controls
Palm Buttons
DC Variable Speed Motor
Minster 250 Ton Hevistamper SSDC High Speed Mechanical Press, E2-250-60-44, 2" stroke, 100-200 SPM, 20" Shut Height, Mechanically Rebuilt
Note: Includes slide assembly, clutch/brake and counterbalance rebuild. All wearable components replaced, and slide adjustment assembly completely gone through and checked out.
Note: Includes going through the entire lubrication and air system. Checking all metering blocks, and lube lines to make sure in proper working order. Check the lube pump and motor to make sure functioning properly. Go through and check out the air filters and regulators for proper functionality.
Imperial
| Tonnage | 250 T |
| Stroke | 2" |
| Shut Height | 20" |
| Bed area (Left to right) | 60" |
| Bed area (Front to back) | 44" |
| SPM min. | 100 strokes/min. |
| SPM max. | 200 strokes/min. |
| Adjustment | 3" |
| Windows Width | 22" |
Model Number: E2-250-60-44
Serial Number: E2-250-15255
Bed Area: 60” x 44”
Slide Area: 60” x 44”
Stroke: 2”
Strokes per Minute: 100-200
Shut Height: 20” over bed
Bolster Plate: 6” thick t-slotted plate
Slide Adjustment: 6”
Windows: 22” wide x 12.5” high
Floor Standing
Air Clutch and Brake Assembly
Model#: 132-GC
Air Counterbalances
Recirculating Lube System
Dual Herion Valve
8 Point Gibbing
Floor Standing
Motors and Controls
Palm Buttons
DC Variable Speed Motor
