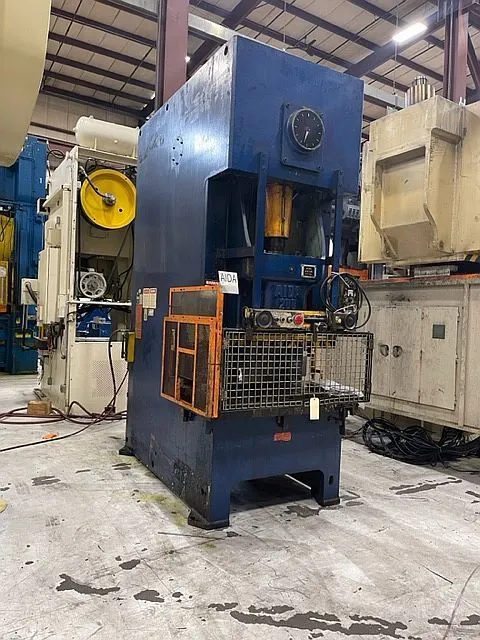

Aida 220 US Ton Gap Frame Mechanical Press, Model #: NC1-200(1), 54.7" x 26.7" Bed area, 6.29" Stroke, 35-70 SPM, 20.14" Shut Height, Complete Mechanical Recondition
I. Known repairs found during inspection:
A. Counterbalance Cylinders:
1. Disassemble, clean, and inspect.
2. Superb to hone cylinder, polish rod and piston, furnish new packings and seals.
3. Reassemble complete and pressure test.
B. Slide Assembly/Link:
1. Remove link and adjustment screw from slide.
2. Upper connection, furnish material, machine and split. Install and fasten into link and cap. Assemble and finish bore.
3. Both lower connection, clean up/polish ball set and ball and make sure everything is in good working order and reassemble.
4. Reassemble adjustment screw into nut/housing.
5. Machine bottom of slide assembly to parallel.
6. Machine ways in press to parallel.
C. Removed both main crank bushings. Ordered new bronze bushings. Install onto crankshaft and reinstall crankshaft back into crown of press.
II. Complete Update of Lubrication and Air system; includes a new lube pump and motor, go through metering blocks and make sure all in good operating order, replace any lines that require replacement. Update Air Filters and Regulators for counterbalances, clutch/brake, etc.. Test run to make sure everything is functioning properly.
Note: The press will require a new Press Controller. I have had a Wintriss WPC 2000 Quoted, installed and wire in with existing Aida control, so everything is in good working order.
Model Number........................... NC1-200(1)
Capacity……………………………………. 220 US Tons
Bed..............................................54.7” x 26.7”
Slide Area………………………………….. 34.6” x 25.5”
Stroke...........................................6.29”
Shut Height..................................20.14” SDAU Over Bolster
Strokes Per Minute......................35-70
Adjustment...................................4.33”
Overall Weight……………………………... 60,000 # approx.
Floor Standing
Air Clutch and Brake
T-Slotted Bolster and Ram
Aida Press Controls
Dual Palm Buttons
Single/ Inch/ Continuous Operation
Power: 480/3/60
Forward/Reverse
Variable Speed Main Motor
Hydraulic Overloads
Dual Ross Air Valve
Main Motor: 20 HP
