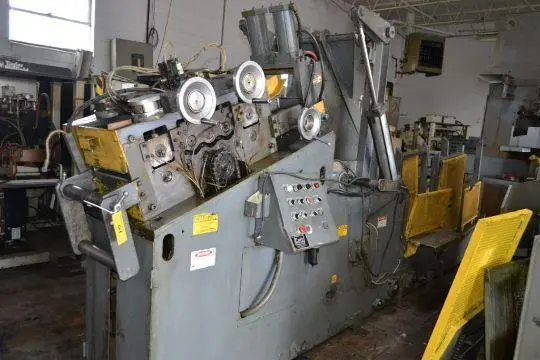

12" wide x 8000# Colt Coil Cradle/Straightener Combination
ConditionUsed
1 available
Colt Combination Cradle/Straightener, Capacity: 12" wide x 8000 #, 0.190" thickness capacity at full width, 4" diameter Straightening Rolls
Coil Weight Capacity.......................8,000 #
Serial Numbers……………………………... 1281128
Model Number…………………………….… CSHCE-80-12
Coil Width Capacity.........................12”
Stock Thickness Capacity…………..…12” wide x 0.190” thick material
Max. Coil O.D. …………………………….... 60”
Power Supply………………………….……... 460 Volt/ 20 AMPs
Entry and Exit Pinch Rolls x 5" diameter
Air operated pinch roll adjustment
7 Straightening Rolls x 4" diameter
Bank Type Upper Straightening Roll Adjustments
Inclined Straightener Head
Adjustable Stock Width Edge Guides
Air Operated Entry Coil End Debender
Air Operated Hold Down Arm
Exit Cascade Loop Support Rollers
Adjustable Coil Side Plates
Coil Storage Rack
Operators Control Console
Jog Forward Reverse
Auto/Run Cycle
Loop Control
