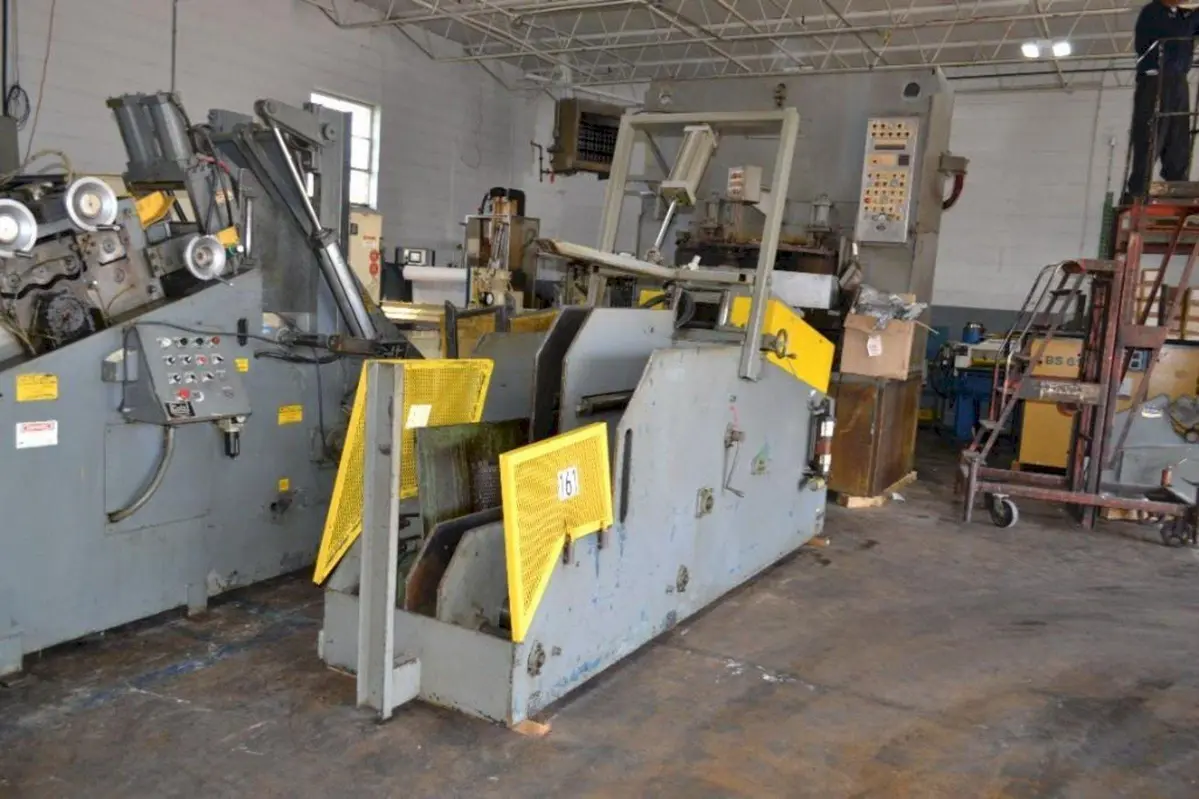

Coe Cradle/Straightener Combination, Weight Capacity: 10,000 #, Width Capacity: 12" wide, Thickness capacity: 12" wide x 0.187" thick material
Coil Weight Capacity......................10,000 #
Serial Numbers……………………………... H083011B
Model Number………………………….…… CPCC-10012
Coil Width Capacity...............................12”
Stock Thickness Capacity……………………12” wide x 0.156” thick material
Capacity…………………………………..........…... 6” wide x 0.187” thick mat.
Feed Direction………………………………. Right To Left
Max. Coil O.D. …………………………….. 60”
Power Supply………………………………... 460 Volt/ 20 AMPs
Entry and Exit Pinch Rolls(Air Operated Adjustments)
7 Straightening Rolls x 3" diameter
Individual Upper Coil Cradle Straightening Roll Adjustments
Roll Position Indicators
Inclined Straightening Head
adjustable stock width edge guides
Air Operated Coil Hold Down Arm
Exit Cascade Loop Support Rollers
Adjustable Coil Side Plates
Outboard Air Pressure Regulators and Gauges
Operator Control Console
Jog Forward and Reverse
Auto/Run Cycle
Loop Control
