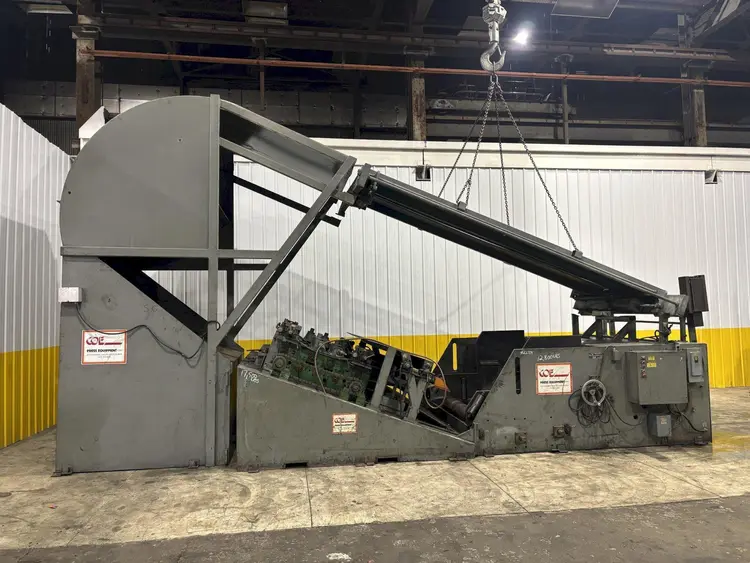

Coe Cradle/Straightener Combination, Capacity: 72" wide x 20,000#, Thickness Capacity: 0.200" at full width
Coil Weight Capacity.............................20,000 #
Model…………………………………….............…. CPCC-20072
Serial Number……………………………........….E08935B
Coil Width Capacity...............................72”
Stock Thickness Capacity……………………72” wide x .200” thick material
Capacity……………………………………… ..........48” wide x 0.250” thick material
Coil O.D..................................................60”
Power Supply………………………........………. 460/3/60
Feed Direction…………………………….......… Right to Left
Coil cradle straightener entry and exit pinch rolls
Air Operated Upper coil Cradle straightener pinch roll adjustments
Five Straightening Rolls x 5" diameter
Hand Crank Upper Straightening Rolls Adjustments (5 Ton Screw Jacks)
Inclined Floor Mounted Powered Straightener
Air Operated Stock Peeler
Stock End Debender System
Dual Adjustable Side Plates with Side Plate Rollers
Reverse Loop Stock Deflector
Overhead Guide Chute
Chute Extension
Common Operators control console
