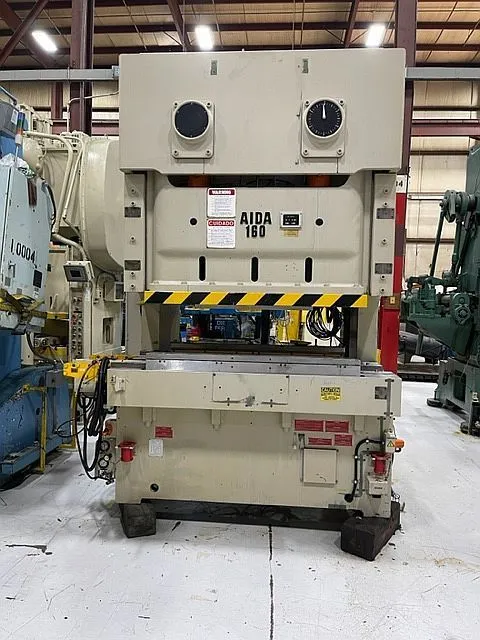

176 US Ton Aida Double Crank Gap Frame Mechanical Press, Model #: NC2-160(1)

176 US Ton Aida Double Crank Gap Frame Mechanical Press, Model #: NC2-160(1)

Sell Your AIDA NC2-160(1)
(248)709-6723
brian@rygatellc.com
ConditionUsed
1 available
Sell Your AIDA NC2-160(1)

Overview

Type:
Gap Frame (OBS) Presses
Manufacturer:
AIDA
Model:
NC2-160(1)
Year:
1995
Stock #:
710-02478
Status:
For Sale
Serial #:
10516-1752

Description

Aida 176 US Ton Gap Frame Mechanical Press, 75.2" x 33.4" bed area, 5.12" stroke, 40-85 SPM, 12.4" Shut Height

Tonnage176 T159.665 t
Stroke5.12"130.05 mm
Shut Height12.4"314.96 mm
Bed area (Left to right)75.2"1,910.1 mm
Bed area (Front to back)33.4"848.36 mm
SPM min.40 strokes/min.40 strokes/min.
SPM max.85 strokes/min.85 strokes/min.
Adjustment3.93"99.822 mm
Weight3800038000

Year of Manufacture: 1995
Serial Number: 10516-1752
Model Number: NC2-160(1)
Capacity: 176 US Tons
Blanking Capacity: 141 US Tons
Bed Area: 75.2 x 33.4”
Slide Area: 59” x 22.8”
Stroke: 5.12”
Shut Height: 12.4” SDAU Over Bolster
Strokes Per Minute: 40-85
Adjustment: 3.93” Approx.
Overall Weight: 38,000 # approx.
Floor Standing

Air Clutch and Brake
Aida Press Controls
Quick Die Change rollers with table
Dual Palm Buttons
Single/ Inch/ Continuous Operation
Power: 480/3/60
Forward/Reverse
Variable Speed Main Motor
20 HP Main Motor
Dual Ross Air Valve

Note: Includes a brand New Wintriss WPC 2000 Press controller, cabinet mounted, and installed on the press. Electrically, press is has brand new controls mounted and installed.
