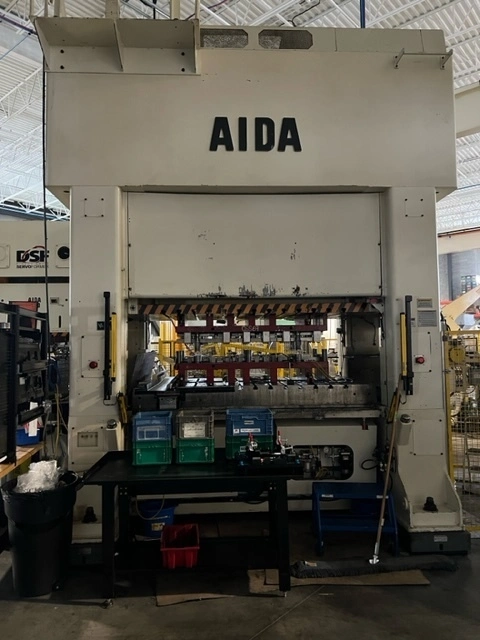

330 US Ton Aida Model PMX Eccentric Geared Progressive Link Motion Mechanical Press

330 US Ton Aida Model PMX Eccentric Geared Progressive Link Motion Mechanical Press

Sell Your AIDA PMX-L2-3000(1)
(248)709-6723
brian@rygatellc.com
ConditionUsed
1 available
Sell Your AIDA PMX-L2-3000(1)

Overview

Type:
Straight Side Mechanical Stamping Presses
Manufacturer:
AIDA
Model:
PMX-L2-3000(1)
Year:
2006
Stock #:
710-02474
Status:
For Sale

Description

330 Ton Aida Straight Side Eccentric Geared PMX Model Mechanical Press, 96.5" x 47.2" bed area, 7.87" stroke, 40-100 SPM, 48" wide window, 21.65" SH over bolster, New in 2006

Tonnage330 T299.371 t
Stroke7.87"199.9 mm
Shut Height21.65"549.91 mm
Bed area (Left to right)96.5"2,451.1 mm
Bed area (Front to back)47.2"1,198.9 mm
SPM min.40 strokes/min.40 strokes/min.
SPM max.100 strokes/min.100 strokes/min.
Adjustment3.94"100.08 mm
Windows Width48"1,219.2 mm
Slide Area96.5" x 47.2"96.5" x 47.2"

Air Clutch and Brake Assembly
Air Counterbalances
T-slotted Bolster and Ram
Trabon Recirculating Lubrication System
Free Standing Console Press Control
Wintriss Smart Pac 2 Press controls
Set of Light curtains
Vibration Isolation Levelers
Hydraulic Overload Protection
Dynamic Balancing of Slide and Upper Die
Power Requirement: 480/3/60
