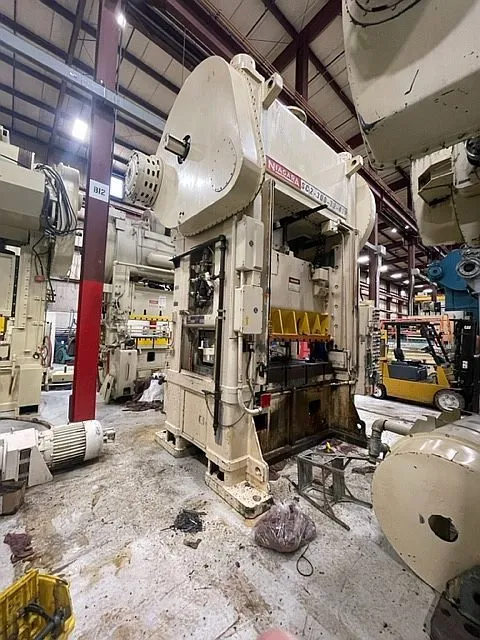

Niagara 300 Ton Twin End Backshaft Driven Mechanical Press, Model #: BP2-300-72-42

Model Number: SC2-300-72-42P
Serial Number: P50327
Year of Manufacture: 1978
Bed Area: 72” x 42”
Slide Area: 72” x 42”
Stroke: 8”
Strokes per Minute: 30-60
Shut Height: 27” over bed
Shut Height Over Bolster: 21” SDAU
Bolster Plate: 6” thick t-slotted plate
Slide Adjustment: 12”
Windows: 32” wide x 20” high

Footprint Dimensions: 105” LR x 79” FB
Hauling Dimensions: 168” wide x 207.5” long x 118” high
Floor to Top of Bolster: 47”
Note: This does not include vibration isolation levelers (approx. additional height- 7”)
Overall Height: 17’ 3 1/2” floor to top of motor (highest point)
Overall Weight: Approx. 90,000#
Floor Standing
