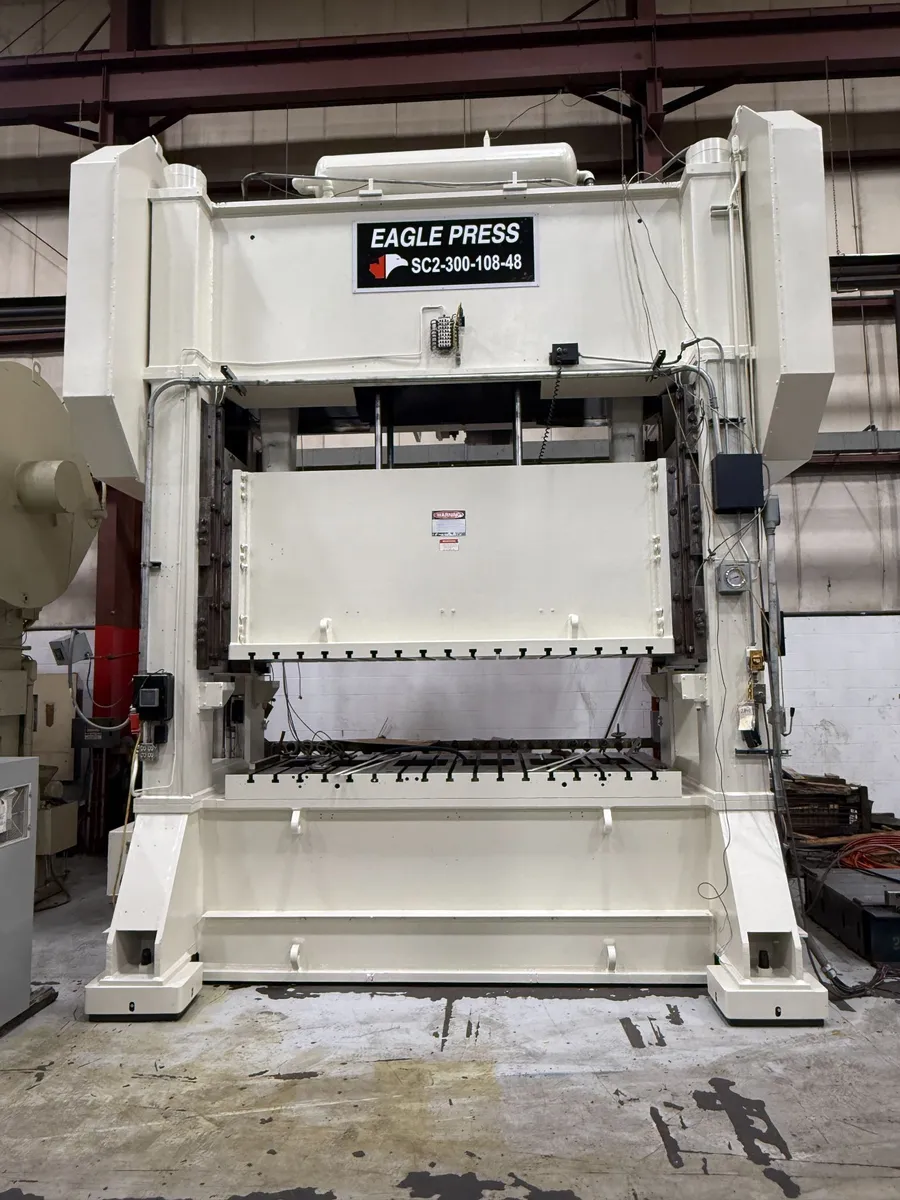

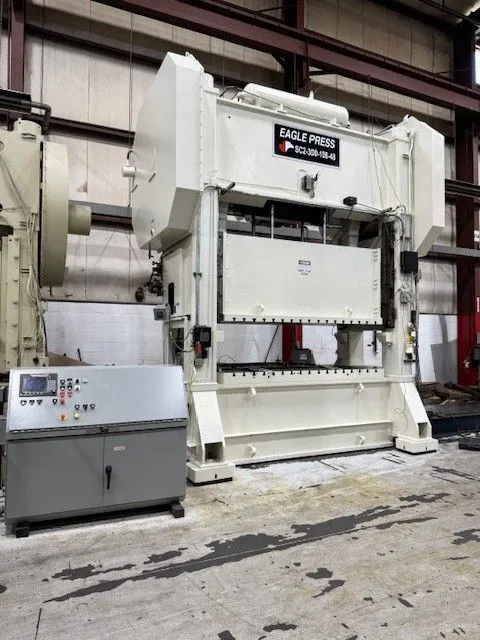

300 Ton Eagle Straight Side Twin End Backshaft Driven Mechanical Press
Straight Side Mechanical Stamping Presses
300 Ton Eagle SSDC Mechanical Press, 108" x 48" bed, 12" stroke, 25-50 SPM, 32" Shut Height over bolster, 30" wide window, New in 1995
| Tonnage | 300 T |
| Stroke | 12" |
| Shut Height | 32" |
| SPM | 0 strokes/min. |
| Vari Speed (Yes/No) | Yes |
| Bed W | 48" |
| Bed L | 108" |
| Crank (Single/Double) | Double |
| Air Clutch (Yes/No) | Yes |
| Slide Area | 108" x 48" |
| Slide Adjustment | 6" |
| Windows Width | 30" |
| Year of Manufacture | 1995 |
| Dimensions | 19' 1" tall x 155" LR x 95" FB |
| Weight | 124,000 # |
Air Clutch/Brake Assembly
Dual Ross Air Valve
Air Counterbalances
Recirculating Lubrication System
Hydraulic Tie Rod Nuts
T-Slotted Bolster and Ram
8 Point Gibbing
Omnilink 5000 Press Control New in 2016
Floor Standing Design
