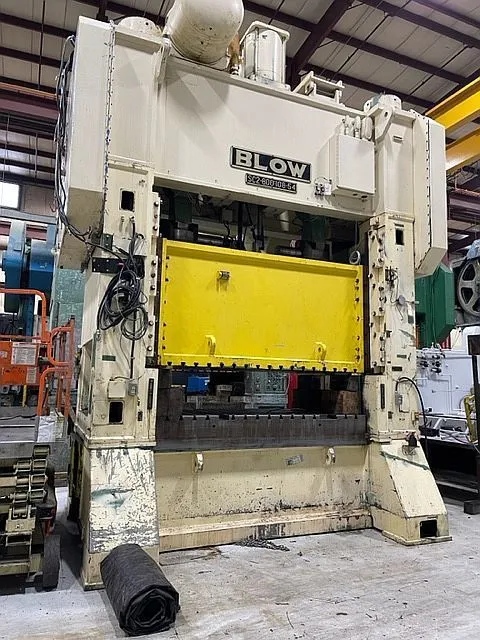

800 Ton Blow Straight Side Twin End Backshaft Driven Mechanical Press
ConditionUsed
1 available
800 Ton Blow SSDC Mechanical Press, 108" x 54" bed area, 10" stroke, 8-22 SPM, 32" Shut Height, 10" Adjustment, 42" wide window, Link 501 Press Control
Model Number: SC2-800-108-54
Serial Number: SDG-800-349-95
Year of Manufacture: 1995
Bed Area: 108” x 54”
Slide Area: 108” x 54”
Stroke: 10”
Strokes per Minute: 8-20 Vari Speed
Shut Height: 32” over bed
Slide Adjustment: 10”
Windows: 42” wide
Overall Height: 21’6” bottom of press to top of counterbalances
Approx. 19’ from floor to top of tie rod nuts
Floor to top of bolster: 55”
Overall Weight: 215,000 #
Floor Standing
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
8" Thick Bolster
42" Wide Windows
Hydraulic Overloads
Motors and Controls
Floor Standing Electrical Control Console
Link Logic Clutch Brake Control
Variable Speed Drive and Motor
Imco Tonnage Monitor
Gemco PLS Control
Hydraulic Tie Rod Nuts
Floor Standing
