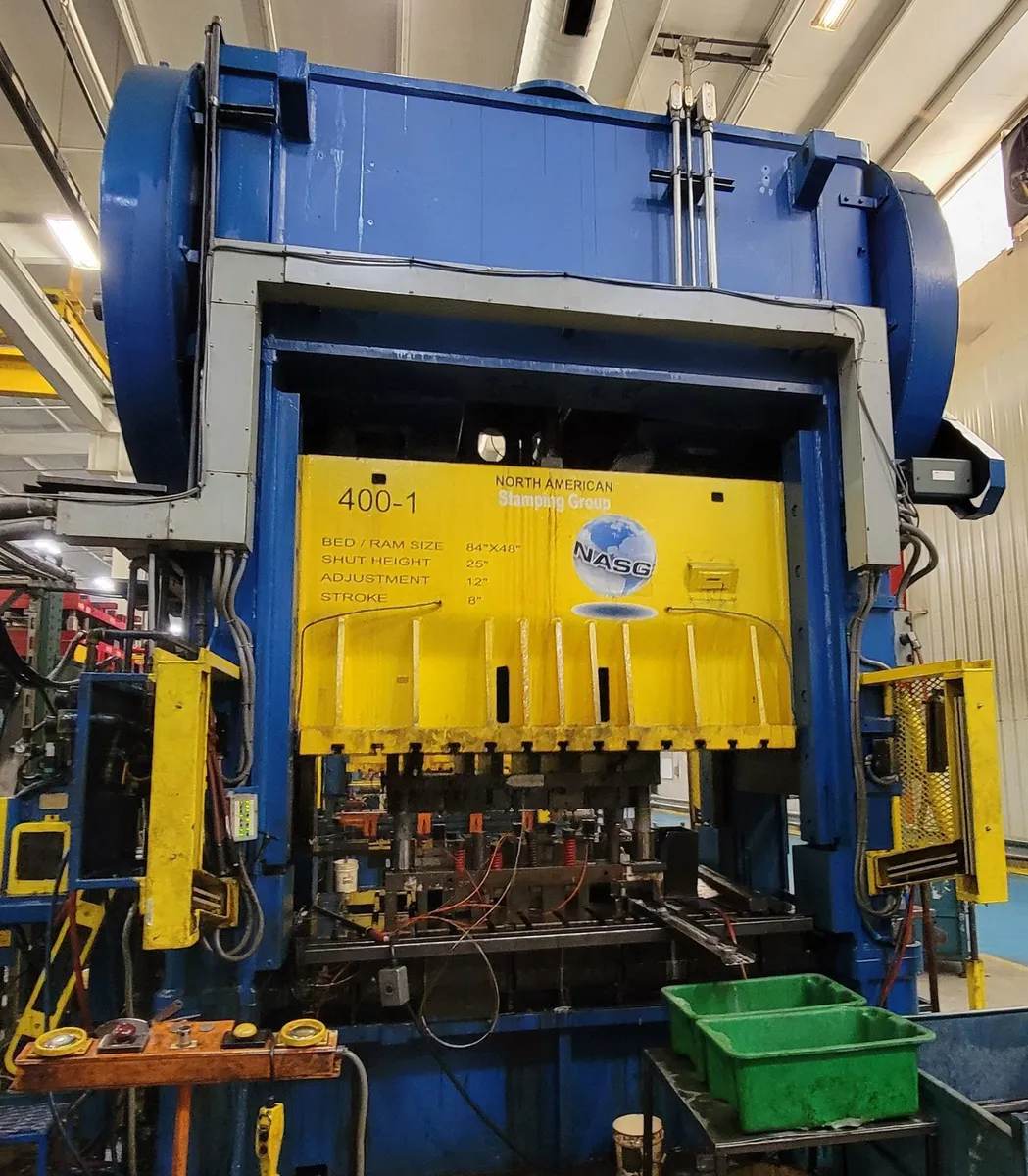

400 Ton Niagara Straight Side Mechanical Press, SC2-400-84-48, 8" stroke, 35-70 SPM
ConditionUsed
1 available
400 Ton Niagara, SC2-400-84-48, 8" stroke, 35-70 SPM, 25" Shut Height, 35" wide windows, Floor Standing Design, Allen Bradley PLC Controls
Capacity: 400 US Tons
Model Number: SC2-400-84-48
Serial Number: P51018
Year of Manufacture: 1980
Bed Area: 84” x 48”
Slide Area: 84” x 48”
Stroke: 8”
Adjustment: 14”
Shut Height: 32 1/2” SDAU over bed
25 1/2” SDAU Over Bolster
Strokes per Minute: 35-70
Windows: 35” wide x 22” high
Bolster Plate: 8” thick T-Slotted
Overall Height: 19’6” floor to top of motor/flywheel
Footprint Dimensions: 119” LR x 95” FB
Floor Standing
Air Clutch and Brake Assembly
Air Counterbalances
T-Slotted Ram and Bolster
Trabon Recirculating Lubrication System
Free Standing Press Control
Allen Bradley Panel View PLC 500
75 HP @ 1800 RPM Main Motor
Palm Button Stand
Knockouts in Slide
8 Point Gibbing
Single/Inch/Continuous
Motors and Controls
400 Ton Niagara, SC2-400-84-48, 8" stroke, 35-70 SPM, 25" Shut Height, 35" wide windows, Floor Standing Design, Allen Bradley PLC Controls
Imperial
| Tonnage | 400 T |
| Stroke | 8" |
| Shut Height | 25" |
| Bed area (Left to right) | 84" |
| Bed area (Front to back) | 48" |
| SPM min. | 35 strokes/min. |
| SPM max. | 70 strokes/min. |
| Adjustment | 12" |
| Windows Width | 35" |
Capacity: 400 US Tons
Model Number: SC2-400-84-48
Serial Number: P51018
Year of Manufacture: 1980
Bed Area: 84” x 48”
Slide Area: 84” x 48”
Stroke: 8”
Adjustment: 14”
Shut Height: 32 1/2” SDAU over bed
25 1/2” SDAU Over Bolster
Strokes per Minute: 35-70
Windows: 35” wide x 22” high
Bolster Plate: 8” thick T-Slotted
Overall Height: 19’6” floor to top of motor/flywheel
Footprint Dimensions: 119” LR x 95” FB
Floor Standing
Air Clutch and Brake Assembly
Air Counterbalances
T-Slotted Ram and Bolster
Trabon Recirculating Lubrication System
Free Standing Press Control
Allen Bradley Panel View PLC 500
75 HP @ 1800 RPM Main Motor
Palm Button Stand
Knockouts in Slide
8 Point Gibbing
Single/Inch/Continuous
Motors and Controls
