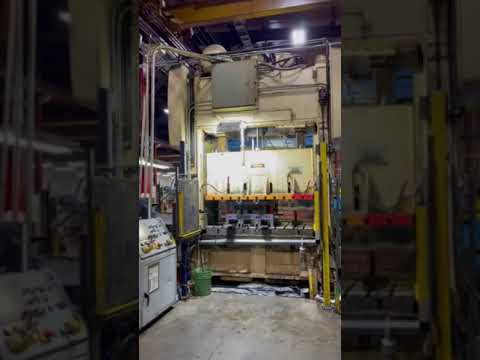

150 Ton Niagara Straight Side Twin End, Backshaft Driven Mechanical Press
ConditionUsed
1 available
150 Ton Niagara Straight Side Mechanical Press, 72" x 36" bed, 8" stroke, 35-70 SPM, 19" Shut Height, Windows
Capacity: 150 Tons @ ½ ” off bottom
Model Number: SC2-150-72-36
Serial Number: 50559
Bed Area: 72” x 36”
Slide Area: 72” x 36”
Stroke: 8”
Adjustment: 9”
Shut Height: 25” SDAU
Strokes per Minute: 35-70
Windows: 22” wide x 15” high
Bolster Plate: 6” thick T-Slotted
Overall Height: 13’9” floor to top of Gear Guard
Footprint: 96” LR x 54” FB
Floor to top of bolster: 38”
Floor Standing
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
T-Slots 6" Centers- Standard 1" T-Slots
Omnilink 5000 Press Control
Electrical Control Console
Motors and Controls
20 HP Main Motor
AC Variable Speed Drive
Trabon Recirculating Oil Lubrication System
Cushions mounted in bed
Hydraulic Tie Rod Nuts
Motorized Ram Adjustment
8 Point Gibbing
Slide Knockouts
Floor Standing
