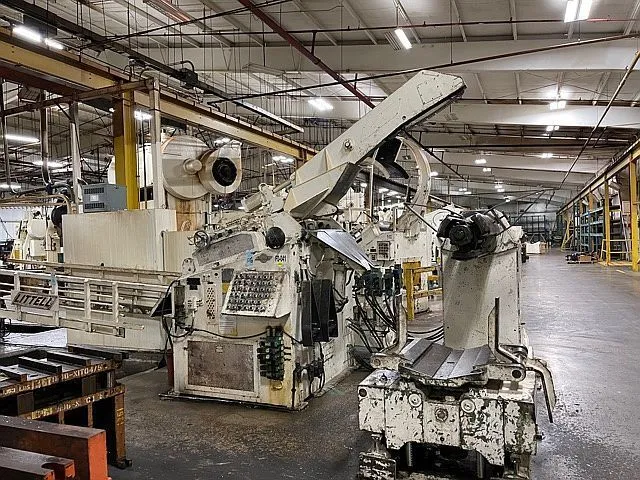

36" wide x 20,000 # Littell Coil Reel with Traveling Coil Car, Littell Powered Straightener, 7 Roll with Hold Down Arm,
Coil Weight Capacity................20,000 #
Model………………………………………. S200/638
Serial Number……………………………….87895-84/87894-84
Coil Width Capacity...............................36”
Stock Thickness Capacity……………………36” wide x .125” thick material
………………………………………………. 18” wide x .187” thick material
………………………………………………. 8” wide x 0.250” thick material
Coil I.D. Range.......................20-24”
Coil O.D..........................................60”
Power Supply………………………………. 460/3/60
Feed Direction……………………………… Right to Left
Littell Coil Reel Non-Motorized
Model #: S200
Capacity: 36” wide x 20,000 #
3 Leaf Mandrel
Keeper Arms
Littell Travelling Coil Car
Centralized Controls for Straightener and Reel
Remote Jog Pendant for Material Threading
Littell Powered Straightener
Model#: 638
7 Roll Straightener (Individually Adjustable)
Exit and Entry Pinch Rolls
Hold Down Arm with Motorized End Wheel
Exit Cascade Rollers
Debender/Peeler Unit
Self Contained Hydraulic Unit for Coil Reel/Straightener
