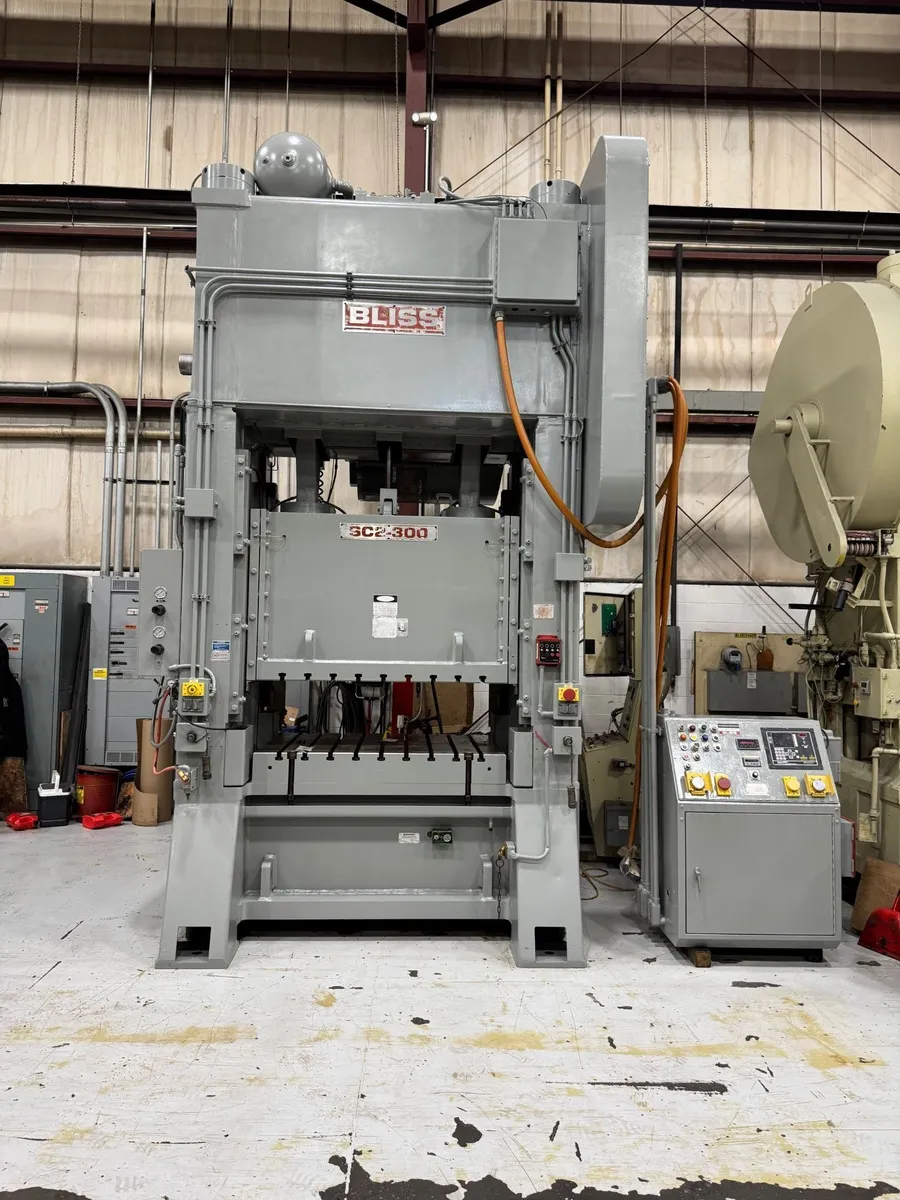

300 Ton Bliss Straight Side High Speed Mechanical Press
ConditionUsed
1 available
300 Ton Bliss Straight Side Single End Backshaft Driven Mechanical Press, SC2-300, 60" x 42" bed area, 10" stroke, 27" Shut Height, 25-50 SPM
Capacity.... ................................................. 300 Tons
Model Number……………………………... SC2-300
Year of Manufacture……………………….. 1997
Serial Number……………………………… HN71735
Bed Area........................................................ 60” x 42”
Slide Area………………………………….. 60” x 42”
Stroke............................................................. 10”
Adjustment..................................................... 10”
Shut Height.................................................... 27” over bed SDAU
Strokes per Minute......................................... 25-50
Windows…………………………………… 31” wide
Floor to top of Bolster……………………… 46 ½”
Overall Height……………………………… 17’ floor to top of main motor
Footprint Dimensions………………………. 93” LR x 84 ¼” FB
Floor Standing Design
Air Clutch and Brake
Air Counterbalances
8 Point Gibbing
Recirculating Lube System
Motorized Adjustment
T-Slotted Ram and Bolster
6" Thick Bolster Plate
Hydraulic Tie Rod Nuts
Dual Ross Air Valve
Press Control (Console)
Wintriss Smart Pac Electrical Control
Vibration Isolation Levelers
Shadow V Light Curtains
Palm Buttons
Motors and Controls
