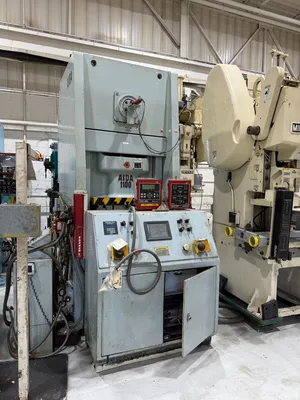

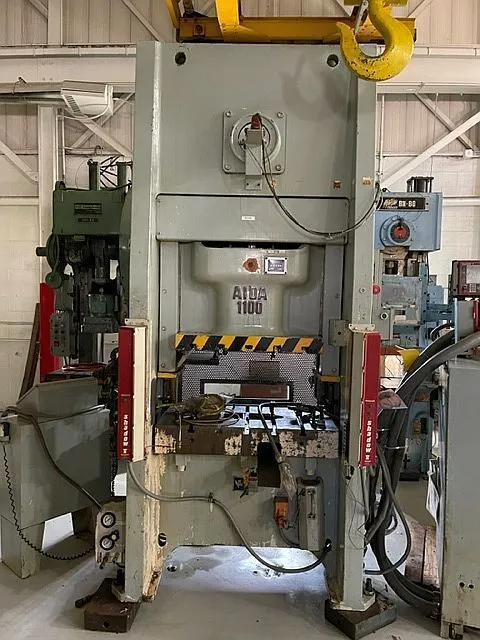

121 Ton Aida Straight Side Mechanical Press, Model #: NC1-1100, Serial #: 10411-8033
ConditionUsed
1 available
$69,500.00 USD
121 Ton Aida Straight Side Eccentric Mechanical Press, 36.4" x 20.5" bed area, 4.33" stroke, 12.6" Shut Height, 50-100 SPM, Wintriss Controls
Capacity: 121Tons
Model Number: NC1-1100
Year of Manufacture: 1992
Serial Number: 10411-8033
Bed Area: 36.4” x 20.5”
Slide Area: 31.5” x 20.5”
Stroke: 4.33”
Adjustment: 3.54”
Shut Height: 12.6” over bed SDAU
Strokes per Minute: 50-100
Windows: 20” wide approx.
Floor Standing Design
Air Clutch and Brake
Air Counterbalances
8 Point Gibbing
Recirculating Lube System
Motorized Adjustment
T-Slotted Ram and Bolster
Dual Ross Air Valve
15 HP Main Motor
Press Control (Console)
Panel Mate Touchscreen

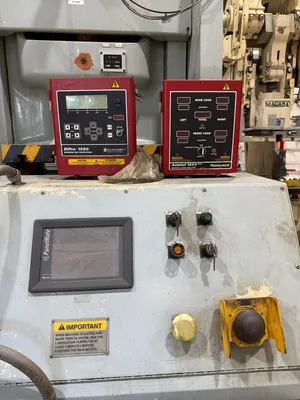

Wintriss DiPro 1500 Die Protection
Wintriss Autoset 1504 Load Analyzer
Shadow V Light Curtains
Vibration Isolation Levelers
Palm Buttons
Motors and Controls
121 Ton Aida Straight Side Eccentric Mechanical Press, 36.4" x 20.5" bed area, 4.33" stroke, 12.6" Shut Height, 50-100 SPM, Wintriss Controls
Imperial
| Tonnage | 121 T |
| Stroke | 4.33" |
| Shut Height | 12.6" |
| Bed area (Left to right) | 36.4" |
| Bed area (Front to back) | 20.5" |
| SPM min. | 50 strokes/min. |
| SPM max. | 100 strokes/min. |
| Adjustment | 3.54" |
| Windows Width | 28" |
Capacity: 121Tons
Model Number: NC1-1100
Year of Manufacture: 1992
Serial Number: 10411-8033
Bed Area: 36.4” x 20.5”
Slide Area: 31.5” x 20.5”
Stroke: 4.33”
Adjustment: 3.54”
Shut Height: 12.6” over bed SDAU
Strokes per Minute: 50-100
Windows: 20” wide approx.
Floor Standing Design
Air Clutch and Brake
Air Counterbalances
8 Point Gibbing
Recirculating Lube System
Motorized Adjustment
T-Slotted Ram and Bolster
Dual Ross Air Valve
15 HP Main Motor
Press Control (Console)
Panel Mate Touchscreen
Wintriss DiPro 1500 Die Protection
Wintriss Autoset 1504 Load Analyzer
Shadow V Light Curtains
Vibration Isolation Levelers
Palm Buttons
Motors and Controls
