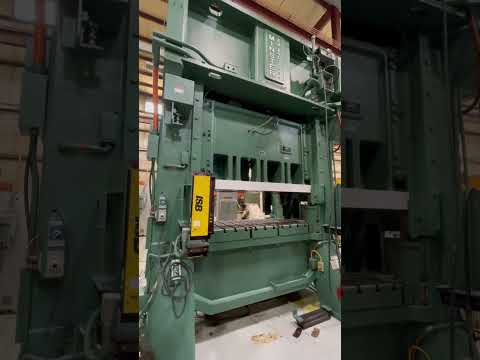

250 Ton Minster Hevistamper High Speed Mechanical Press
ConditionUsed
1 available
250 Ton Minster Hevistamper Straight Side Mechanical Press, E2-250-72-36, 72" x 36" bed, 4" stroke, 0-200 SPM, 25" Shut Height, 6" adjustment, 24" wide window
Note: The press has been thoroughly inspected, and we have gone through the slide assembly. It is in very good mechanical condition, and it is determined to be mechanically production-ready. Minster reps had inspected it and determined so.
Note: The electrical controls are the original. It does work through them, but we always can’t guarantee them and may suggest a PLC upgrade.
Model Number............................................... E2-250-72-36
Serial Number……………………………… E2-250-27157
Bed Area........................................................ 72” x 36”
Slide Area………………………………….. 72” x 36”
Stroke............................................................. 4”
Strokes per Minute......................................... 0-200
Shut Height……………...................... 25” over bed
Shut Height………………………………… 19” over bolster plate
Bolster Plate……………………………….. 6” thick t-slotted plate
Slide Adjustment............................................ 6”
Windows…………………………………… 22” wide x 12.5” high
Footprint Dimensions……………………… 112” LR x 79” FB
Overall Height……………………………... 16’11” floor to top of motor
Floor Standing
Air Clutch and Brake Assembly
Model#: 132-GC
Air Counterbalances
Hydraulic Tie Rod Nuts
Recirculating Lube System
T-Slotted Ram and Bolster
Dual Ross Valve
8 Point Gibbing
Floor Standing
Motors and Controls
Wintriss Load Analyzer
ISB Light Curtains (2 Sets Horizontal/Vertical)
Palm Buttons
DC Variable Speed Motor
