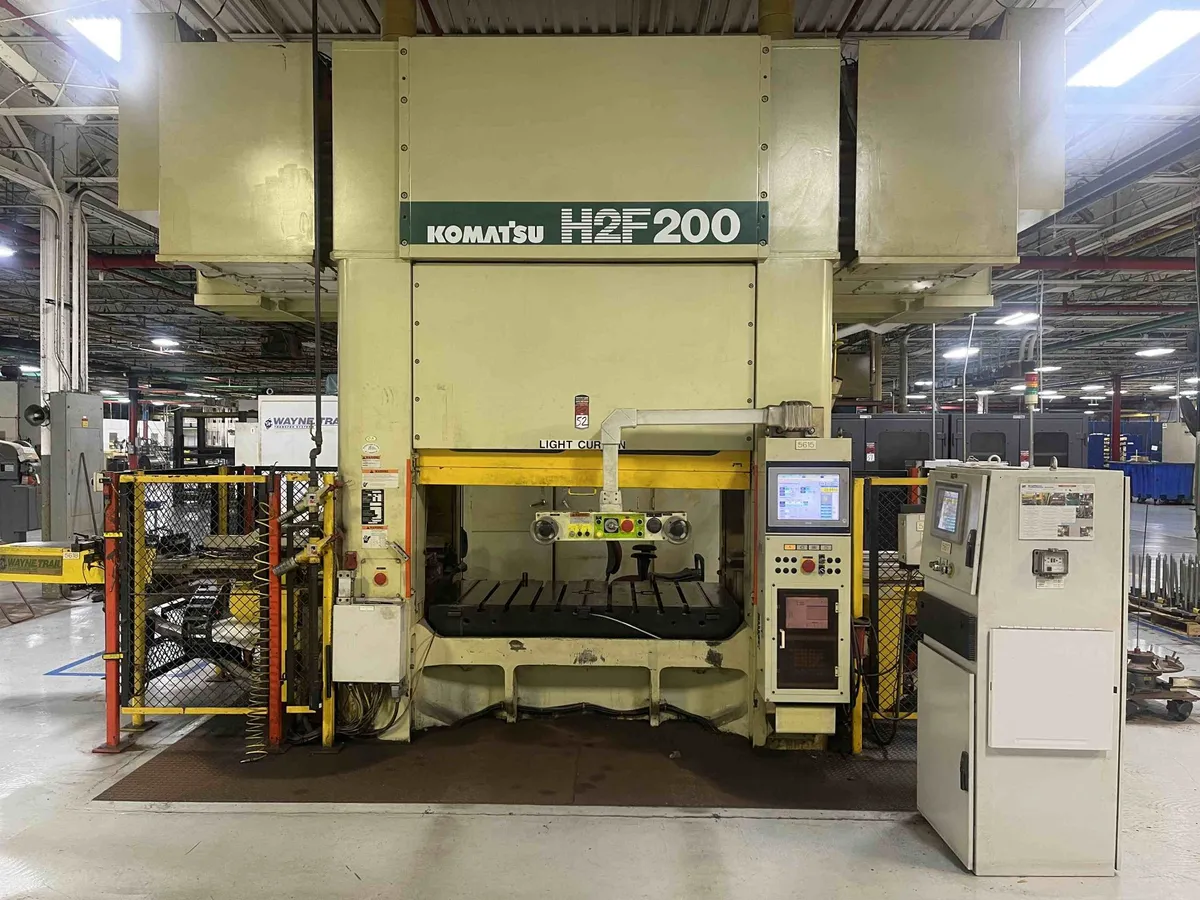

220 US Ton Komatsu Servo Press, Model #: H2F200, 72.83" x 37.40" bed area, 7.87" stroke
ConditionUsed
1 available
220 Ton Komatsu 2 Point Plunger Guided Servo Driven Press, Model: H2F200, 72.83" x 37.40" bed area, 7.87" stroke, 48-88 SPM, 35.04" wide window
Model Number…………………........…....... E2F200
Serial Number……………………………… 10003
Year of Manufacture………………………. 2003
Capacity..................................................... 220 US Tons
Bed Area........................................................ 72.83” x 37.4”
Slide Area…………………………………...72.83” x 33.56”
Stroke............................................................. 7.87”
Adjustment..................................................... 3.94”
Shut Height.................................................... 22.63” over bolster (SDAU)
Bolster……………………………………… 9.06” thick
Strokes per Minute......................................... 48-88
Windows……………………………………35.04” wide
Floor to top of bolster………………………. 40.16”
Approximate Overall Weight………………. 88,000 #
Overall Height of Press…………………….. 15’9” floor to highest point
Accuracy of Slide Bottom Dead Center……. +/- 0.0004”
Floor Standing
Air Clutch and Brake
Air Counterbalance
Recirculating Lubrication System
Oil Type: Komatsu Genuine Oil PT-3
Quantity: 400 Liters
Hydraulic Overload Protection
T-slotted Ram and Bolster
Quick Die Change
Main Motor: 80 HP (2 Sets)
NC Control Device: Fanuc FS16i-MB
Independent Type Servo Control Box
Motorized Slide Adjustment (2.2 inches/minute @ 60 HZ)
Electrical Controls include the following;
-Load Monitor
-Job Memory: 100
-Die Protection System
-Interface for Coil Line (Auto-Single Mode)
