| Tonnage | 121 T | 109.769 t |
| Stroke | 5.9" | 149.86 mm |
| Shut Height | 14.96" | 379.98 mm |
| Bed area (Left to right) | 43.31" | 1,100.1 mm |
| Bed area (Front to back) | 27.56" | 700.02 mm |
| SPM min. | 32 strokes/min. | 32 strokes/min. |
| SPM max. | 65 strokes/min. | 65 strokes/min. |
Capacity.... ................................................. 121 US Tons
Serial Number……………………………… 10004
Year of Manufacture………………………. 1981
Model Number……………………………... OBS
Bed Area........................................................ 43.31” x 27.56”
Slide Area………………………………….. 23.62” x 17.72”
Stroke............................................................. 5.91”
Adjustment..................................................... 3.94”
Shut Height.................................................... 18.9” over bed SDAU
Strokes per Minute......................................... 32-65
Floor Standing
Air Clutch and Brake

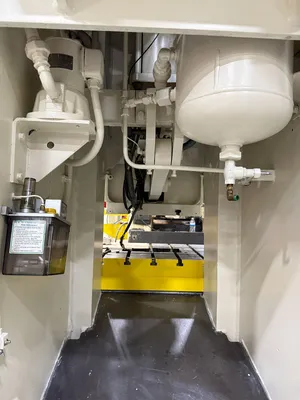

Air Counterbalance
Recirculating Lubrication System

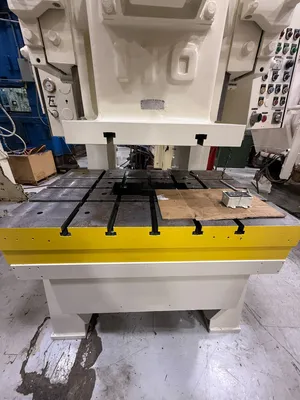

3.94" thick t-slotted bolster

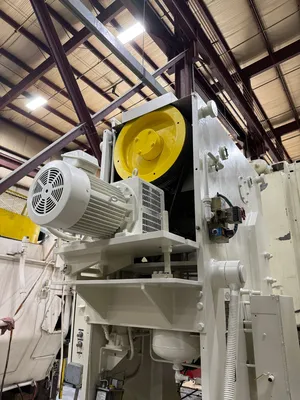

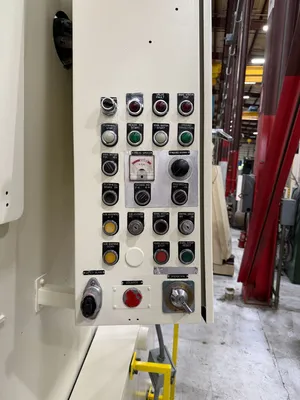

Motors and Controls
