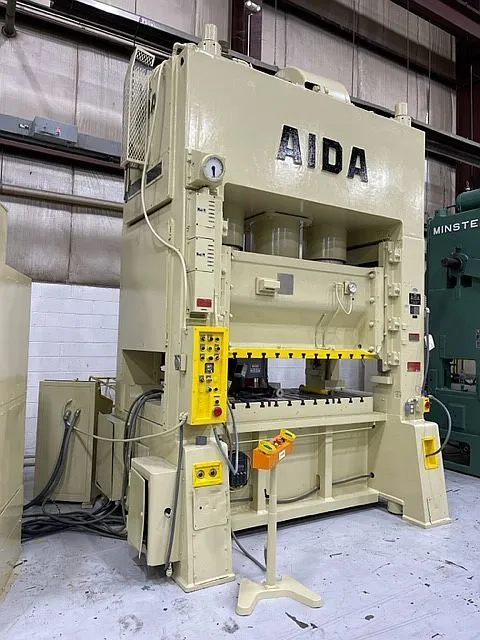

200 Ton Aida Straight Side High Speed Mechanical Press
ConditionUsed
1 available
$149,500.00 USD
200 Ton Aida, Model #: PDA-20M, 72.8" x 39.3" bed area, 5.9" stroke, 17.7" Shut Height, 48-120 SPM, 30" wide window
Capacity: 200 Metric Tons
Model Number: PDA-200M
Year of Manufacture: 1984
Bed Area: 72.8” x 39.3”
Slide Area: 72.8” x 39.3”
Stroke: 5.9”
Adjustment: 5.9”
Shut Height: 17.7” SDAU
Strokes per Minute: 48-120
Windows: 30” wide
Bolster Plate: 6” thick T-Slotted
Floor to top of Bolster Plate: 45 ¾”
Overall Hauling Dimensions: 126” wide x 182” long x 83” high
Footprint Dimensions: 112” LR x 83” FB
Floor Standing
Note: The press is in good running condition. It has been thoroughly inspected by Superb Machine Repair, and the press has good overall clearances, and the clutch/brake starts and stops very quickly.
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
T-Slots 6" Centers- Standard 1" T-Slots
8 Point Gibbing
Electrical Control Cabinet
Variable Speed Motor
Motors and Controls
Palm Buttons
Dual Ross Air Valve
Motorized Ram Adjustment
Main Motor Fwd./Reverse
