Coe Servo Feedline 48" wide x 15,000 #
ConditionUsed
1 available

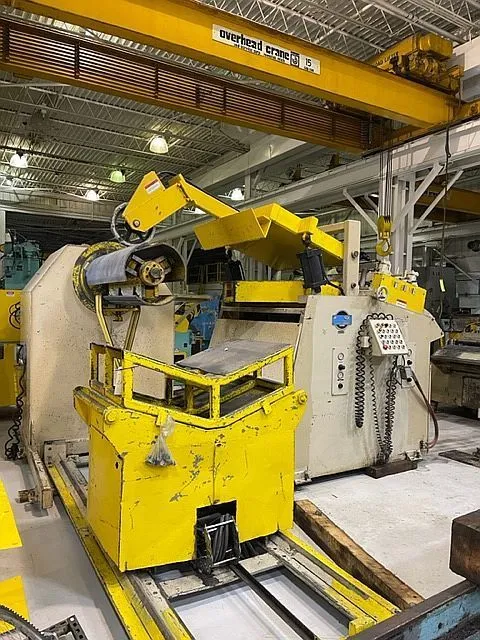

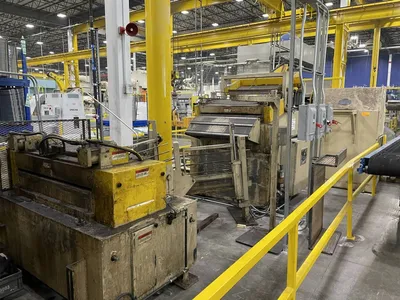

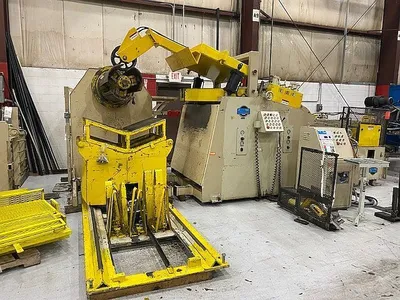

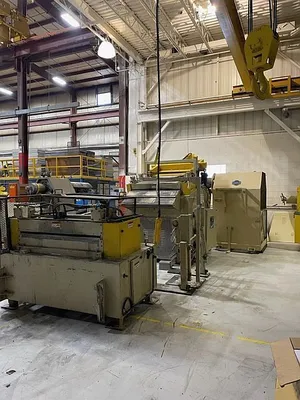

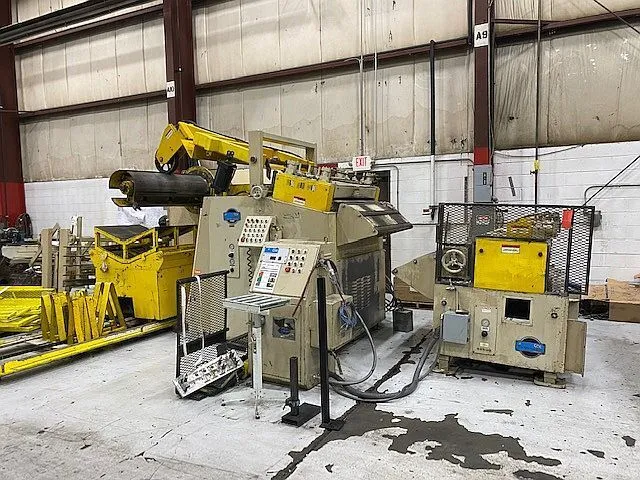

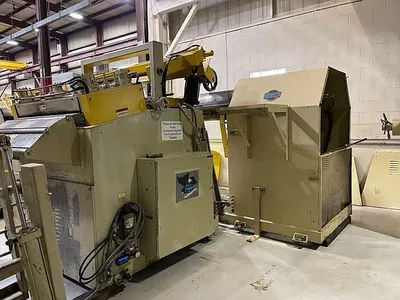

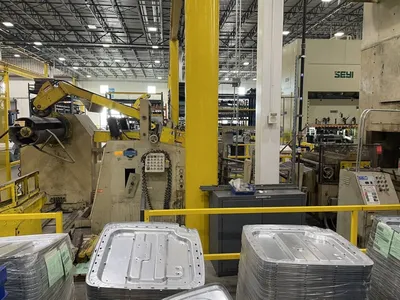

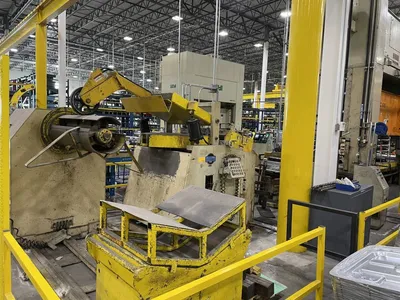

15,000 # x 48" wide Coe Servo Feedline, Coe Coil Reel with Coil Car, Coe Powered Straightener with Hold Down Arm, Coe Cabinet Mounted Servo Feed
Coil weight capacity: 15,000 Lbs.
Coil width capacity: 48"
Stock thickness capacity: .070" x 48" Wide
Expansion range: 19.25" - 24.75"
Coil O.D. capacity: 72"

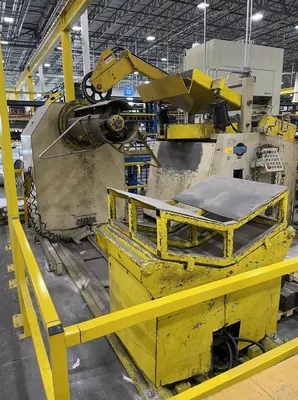

Coe Press Coil Reel Uncoiler Model No.: CPR-PO-15048
Three leaf mandrel coil reel
Heavy duty wedge type hydraulic coil reel mandrel expansion
Coil reel keeper arms
Threading drive for jog forward and reverse
Air brake mounted on main coil reel spindle
Adjustable tensioning
Traveling coil load car
Powered lift and travel

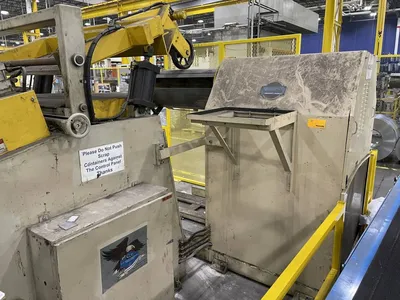

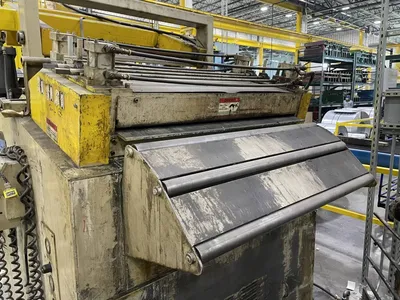

Coe Press Powered Coil Straightener Model No.: CPPS-PO-300-48
Entry and Exit powered coil straightener pinch rolls with air operated adjustments
Seven 3.0" diameter coil straightening rolls
Manual upper straightener rolls adjustments via screw jacks
Hand crank stock width edge guides
Inclined powered coil straightener head
Exit cascade loop support rollers
Stock peeler / de-bender / hold down station
Motorized end wheel on coil hold down arm
Hand held pendant control for jog forward and reverse
Variable speed powered coil straightener drive and control package

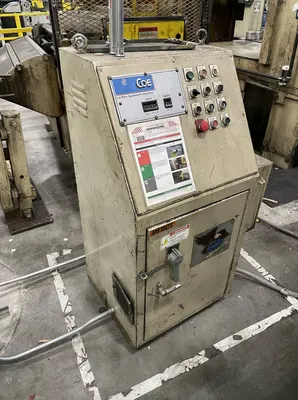

Common operator control station
Auto/Run cycle
Variable speed loop control

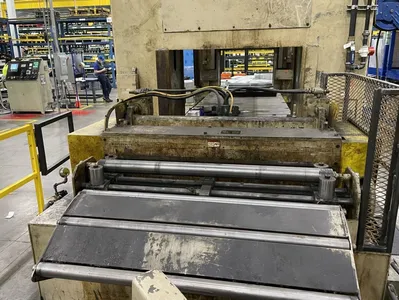

Coe Press Exit Threading Table Model No.: ETT
Bombay door style
Air operated actuation

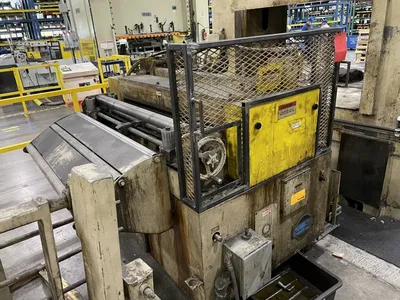

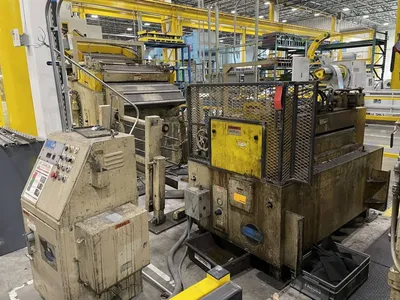

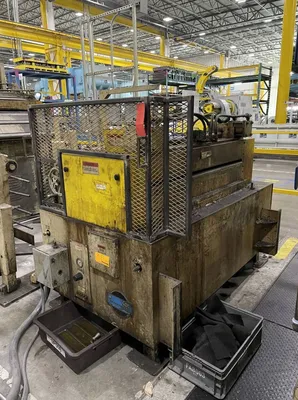

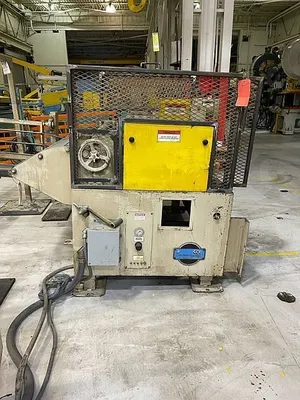

Coe Press Servo Roll Feed Press Feed Model No.: CPRF-448
Upper and lower matte chrome finished servo feed rolls four inch diameter
Air operated upper servo feed roll lift / pilot (dual cylinder)
Cabinet base mounted with pass line adjustments
Hand crank entry stock width edge guides
