CWP / PERFECTO / COLT Conventional Coil Feed Line 30" Wide x 15,000 Lbs.
$69,500.00 USD
ConditionUsed
1 available

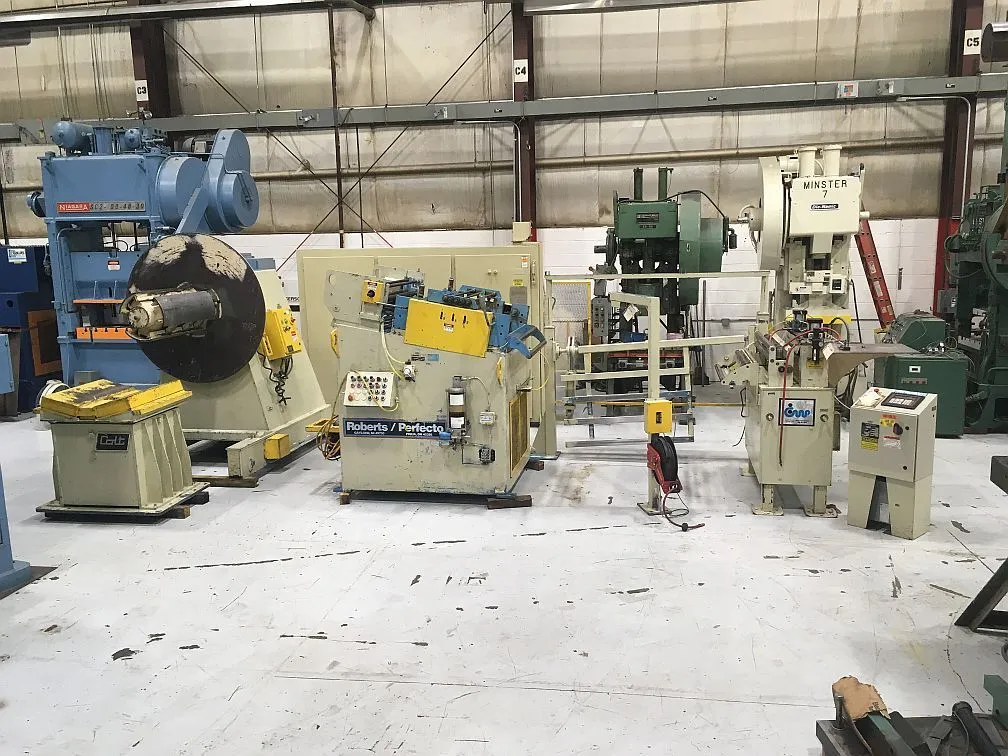

COOPER WEYMOUTH PETERSON / PERFECTO / COLT 15,000 # X 30″ WIDE COMPLETE FEEDLINE, COLT COIL REEL WITH CAR, PERFECTO POWERED STRAIGHTENER
Coil Weight Capacity: 15,000 #
Model: CHDRCK-1500-36/28-36-7/SMX-SE-36
Serial Number: S4-92080/C19310/1201869
Coil Width Capacity: 30”
Stock Thickness Capacity: 30” wide x 0.090” thick material
……………………………………………. 24” wide x 0.156” material
Coil O.D.: 60”
Power Supply: 460/3/60
Speed (IPM): 600-2400 IPM
Feed Direction: R-L
Colt Coil Reel Model CHDRCK-1500-30
Capacity: 30” wide x 15,000 # (36” wide without keepers)
Three leaf mandrel
Hydraulic expansion
Traveling coil reel
Air brake on the main spindle
Stationary coil load car
Perfecto Coil Straightener Model No. 28-36-7
Min. Thickness Capacity: 0.015-0.090”
Entry and exit pinch rolls with air-operated adjustments
Seven straightening rolls x 2.8" diameter
Individual upper roll adjustments
Inclined head
Adjustable stock width edge guides
Cascade loop support rollers
Automatic lubrication system
Variable speed payout
Operator's control station
Ultrasonic loop control
Exit stock threading table
CWP Servo Roll Feed Model SMX-SE36
Min. Thickness Capacity: 0.010-0.060”
Air-operated upper pilot roll lift
Adjustable stock width edge guides
Cascade loop support rollers
Cabinet base mounted
AC Servo controls
