1000 TON WILLIAMS AND WHITE STRAIGHT SIDE HYDRAULIC PRESS
Capacity……………………….. 1000 Tons
Stripping Capacity………………. 85 Tons
Intermediate Press Capacity………. 215 Tons
Distance Between Housings………… 122″ LR
Stroke Length…………………… 36″
Platen Area…………………….. 120″ x 72″
Tie Rod Size……………………. 8 1/4″
Daylight of Moving Platen………… 50″
Platen Speeds
Fast Advance……………………. 405 IPM
Pressing……………………….. 6-43 IPM
Fast Return…………………….. 390 IPM
Intermediate Pressing……………. 30-198 IPM
Slow Return…………………….. 50-390 IPM
Slide Die Lift Capacity (Fast Return) 60,000 #
Equipped With:

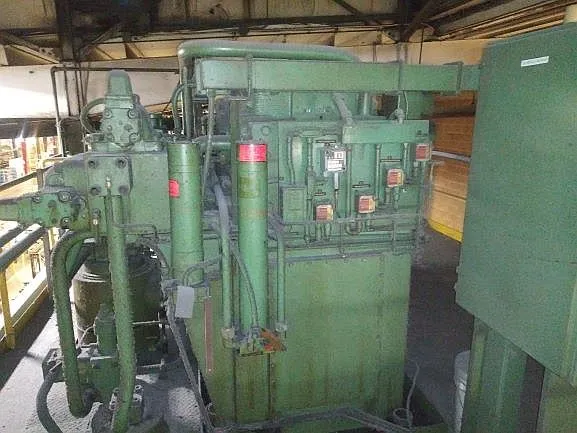

Hydraulic Cylinders- (1) Single Acting 27″ diameter Cylinder
Two Double Acting Cylinders- 10″ x 7″
Hydraulic Working Pressure- 2700 PSI @ 1000 Tons
Oil Gear DV-23030-W Pump- 200 HP @ 900 RPM
3 Phase/ 60 HZ/ 480 Volt
(4) Knockout bars in slide- 3″ stroke of knockout bars
