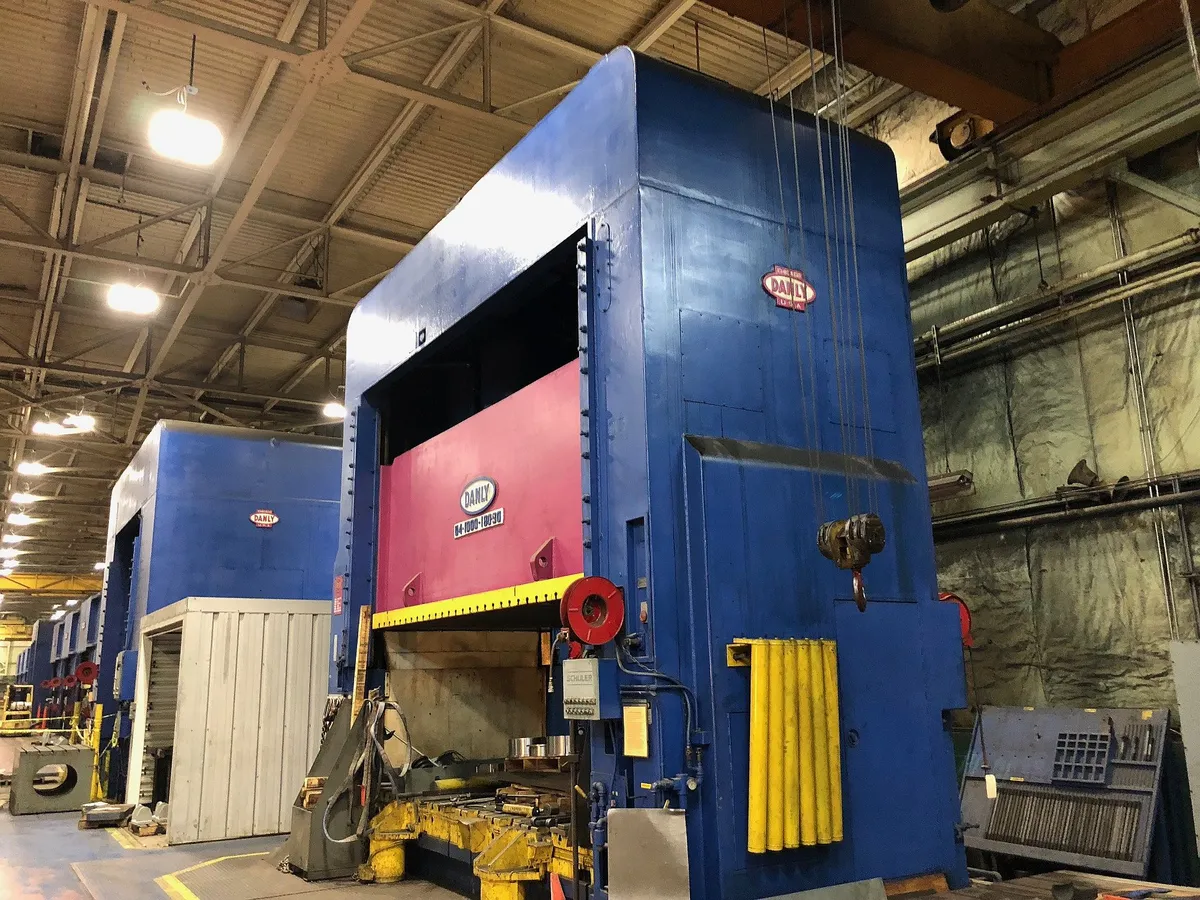

Danly 1000 Ton Straight Side Under Driven Mechanical Press

Danly 1000 Ton Straight Side Under Driven Mechanical Press

Sell Your DANLY U4-1000-180-90
(248)709-6723
brian@rygatellc.com
ConditionUsed
1 available
Sell Your DANLY U4-1000-180-90

Overview

Type:
Straight Side Mechanical Stamping Presses
Manufacturer:
DANLY
Model:
U4-1000-180-90
Condition:
Good
Stock #:
710-02327
Status:
For Sale

Description

1000 TON DANLY STRAIGHT SIDE UNDER DRIVEN MECHANICAL PRESS MODEL #: U4-1000-180-90

Tonnage1,000 T907.186 t
Stroke30"762 mm
Shut Height79"2,006.6 mm
Bed area (Left to right)180"4,572 mm
Bed area (Front to back)90"2,286 mm
SPM min.12 strokes/min.12 strokes/min.
SPM max.12 strokes/min.12 strokes/min.
Adjustment30"762 mm

Capacity…………………………..1000 Ton
Model #…………………………… U4-1000-180-90
Bed Area………………………… 180″ x 90″
Slide Area………………………. 180″ x 90″
Stroke Length…………………. 30″
Slide Adjustment…………….. 30″
Shut Height……………………. 79″ over bed SDAU
Strokes Per Minute…………. 12 Continuous

Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lubrication System
Motors and Controls
Load Gard Trend Series 4 Tonnage Monitor
Palm Buttons
17” Thick Rolling T-slotted Bolster (Rolls F-B)
4 Point Gibbing
Single/Inch/Continuous
Dual Ross Air Valve
