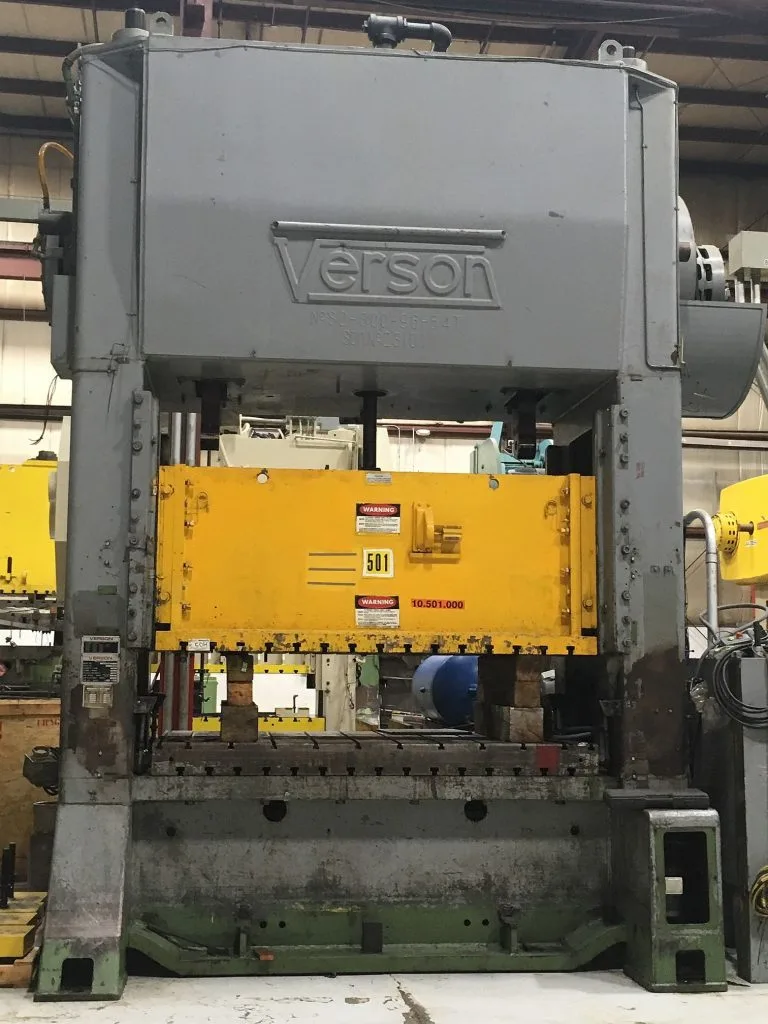

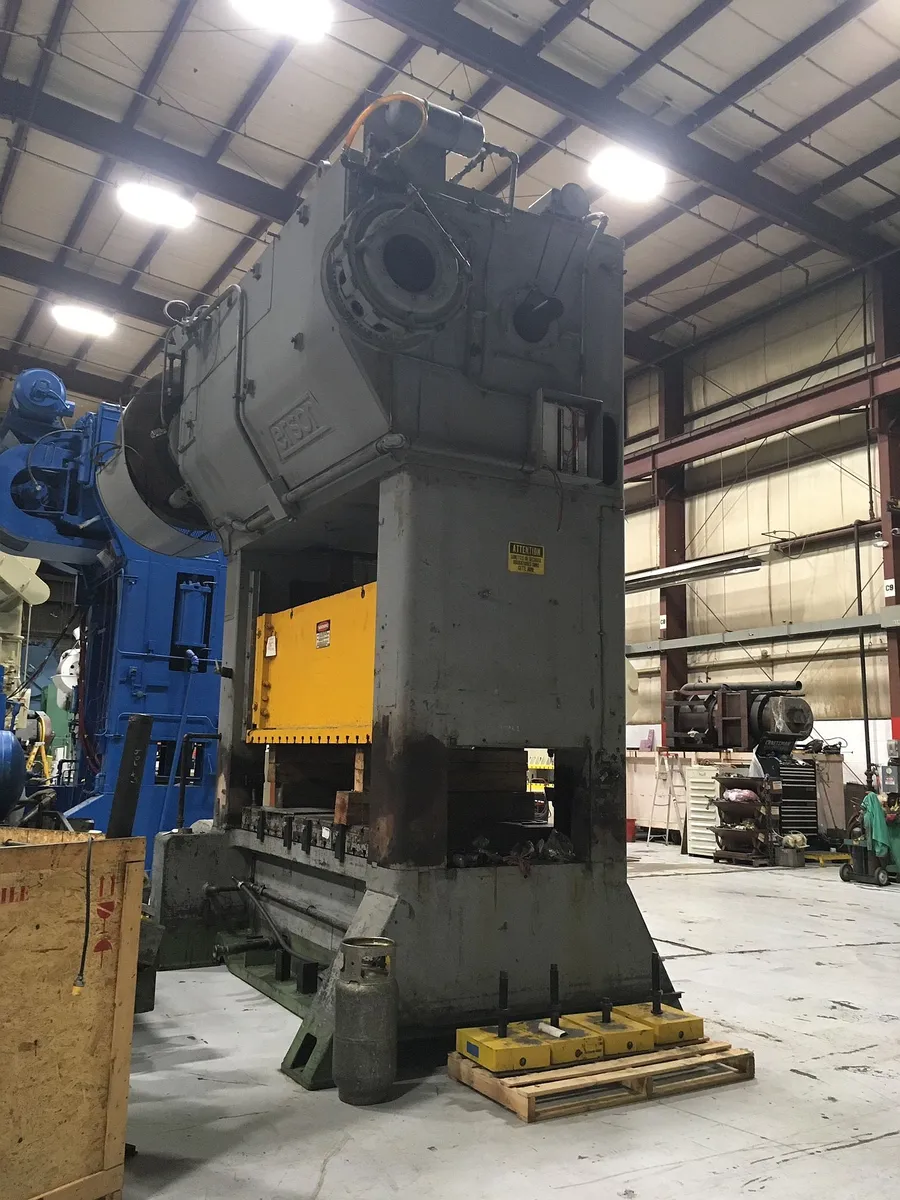

Verson 300 Ton Straight Side Mechanical Press

Sell Your VERSON S2-300-96-54T
(248)709-6723
brian@rygatellc.com
ConditionUsed
1 available
Sell Your VERSON S2-300-96-54T

Overview

Type:
Straight Side Mechanical Stamping Presses
Manufacturer:
VERSON
Model:
S2-300-96-54T
Condition:
Good
Stock #:
710-02213
Status:
For Sale
Serial #:
23101

Description

VERSON S2-300-96-54T stamping press, 300-ton, 12" stroke, 96"x54" bed, 25 SPM. Features air clutch/brake, air counterbalances, T-slotted bolster/ram, and updated systems. Location: Livonia, MI.

Tonnage300 T272.156 t
Stroke12"304.8 mm
Shut Height37"939.8 mm
Bed area (Left to right)96"2,438.4 mm
Bed area (Front to back)54"1,371.6 mm
SPM min.25 strokes/min.25 strokes/min.
SPM max.40 strokes/min.40 strokes/min.
Adjustment8"203.2 mm
Windows Width38"965.2 mm

Model Number: S2-300-96-54T
Serial Number: 23101
Bed Area: 96” x 54”
Slide Area: 96” x 54”
Stroke: 12”
Strokes per Minute: 25/30/40 with change of a sheave
Shut Height: 33” over bed SDAU
Bolster Plate: 7” thick T-slotted
Slide Adjustment: 8”
Windows: 38” wide
Overall Weight: 94,000 #
Floor Standing

Air Clutch and Brake
Air Counterbalances
Palm Buttons
Voltage: 480/60/3
T-slotted bolster and ram
Motors and Controls
Updated Clutch/Brake Control
Dual Ross Air Valve
Recirculating Lubrication System
