Blow 150 Ton Straight Side Twin End, Backshaft Driven Mechanical Press

Blow 150 Ton Straight Side Twin End, Backshaft Driven Mechanical Press

Sell Your BLOW SC2-150-60-36
(248)709-6723
brian@rygatellc.com
ConditionUsed
1 available
$54,500.00 USD
Sell Your BLOW SC2-150-60-36

Overview

Type:
Straight Side Mechanical Stamping Presses
Manufacturer:
BLOW
Model:
SC2-150-60-36
Condition:
Good
Year:
1985
Stock #:
710-02162
Status:
For Sale
Serial #:
SDG-150-239-85

Description

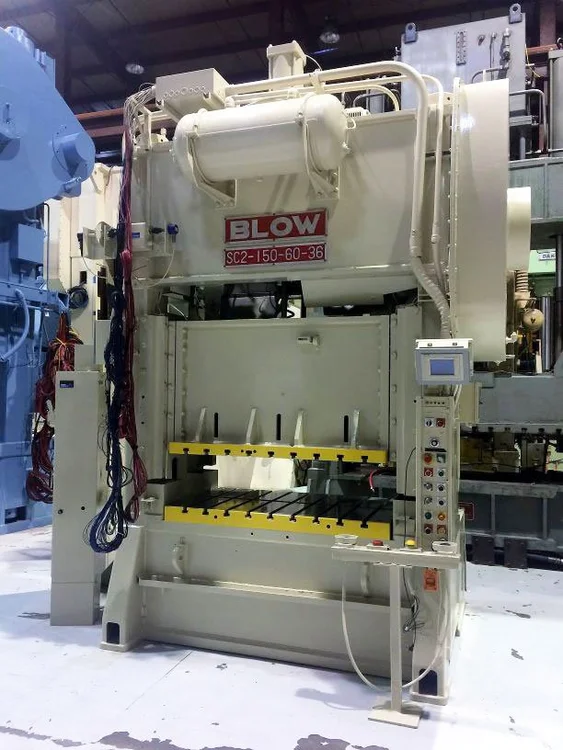

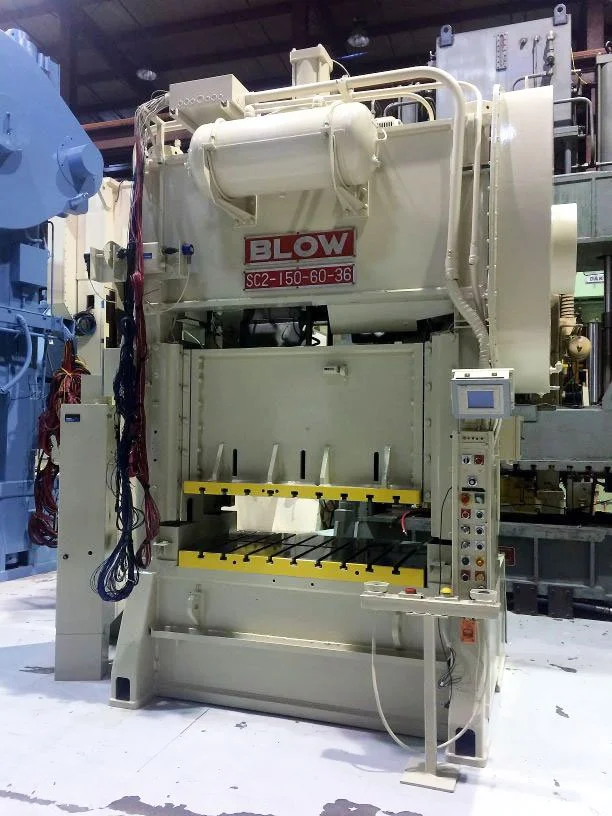

1985 BLOW SC2-150-60-36 Straight Side Mechanical Stamping Press, 150 T capacity. Features include air clutch/brake, 60" x 36" bed, 6" stroke, and Siemens panel. Operates at 30-60 SPM. Located in Livonia, MI.

Tonnage150 T136.078 t
Stroke6"152.4 mm
Shut Height18"457.2 mm
Bed area (Left to right)60"1,524 mm
Bed area (Front to back)36"914.4 mm
SPM min.30 strokes/min.30 strokes/min.
SPM max.70 strokes/min.70 strokes/min.
Adjustment4"101.6 mm
Windows Width18"457.2 mm

Model Number: SC2-150-60-36
Serial Number: SDG-150-239-85
Year of Manufacture: 1985
Capacity: 150 Tons
Bed Area: 60” x 36”
Stroke : 6”
Adjustment: 6”
Bolster: 4” thick T-Slotted
Shut Height: 14” SDAU (over bolster)
Strokes per Minute: 30-70
Windows: 13” wide

Overall Height: 157 ½” tall
Overall Weight: 58,000 #
Floor Standing

Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
T-slots on 6” centers-Standard 1” t-slots
8 Point Gibbing
Electrical Control Cabinet
Variable Speed Motor
Motors and Controls
Palm Buttons
Simatic Panel Siemens
Baumer Electric Rotating Cam Limit Switch
Dual Ross Air Valve
Motorized Ram Adjustment
Main Motor Fwd./Reverse
Imco Tonnage Monitor
