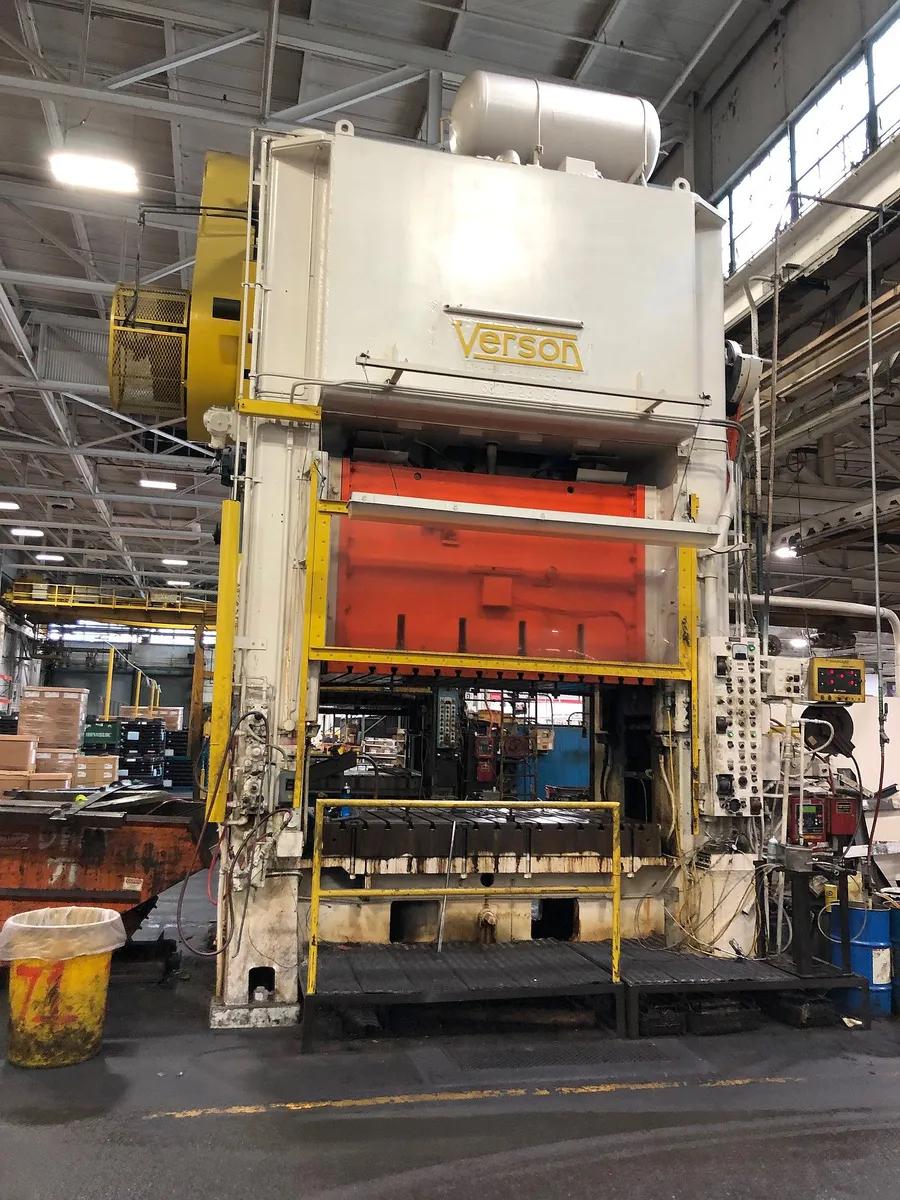

1971 VERSON SE2-600-96-54
Straight Side Mechanical Stamping Presses
| Tonnage | 600 T |
| Stroke | 12" |
| Shut Height | 41" |
| SPM | 50 strokes/min. |
| Vari Speed (Yes/No) | Yes |
| Bed W | 54" |
| Bed L | 96" |
| Crank (Single/Double) | Double |
| Air Clutch (Yes/No) | Yes |
| Slide Area | 96" x 54" |
| Slide Adjustment | 6" |
| Windows Width | 20" |
| Year of Manufacture | 1971 |
Capacity……………………. 600 Tons
Model………………………. SE2-600-96-54
Bed area……………………. 96″ x 54″
Stroke Length……………….. 12″
Strokes Per Minute…………… 25-50
Shut Height…………………. 41″ over bed SDAU
Bolster Plate……………….. 9″ thick T-slotted
Slide Adjustment…………….. 6″
Windows…………………….. 32″ wide approx. possible (currently 20″ wide)
Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lubrication System
T-slotted Bolster and Ram
Dual Ross Air Valve
Hydraulic Tie Rod Nuts
8 Point Gibbing
Motors and Controls
Motorized Ram Adjustment
To be Mechanically Rebuilt:
Includes Counterbalances, Clutch/Brake Assembly, Slide Assembly
Updated Lubrication System and air System
Option of update with New PLC Clutch/Brake Control Package
