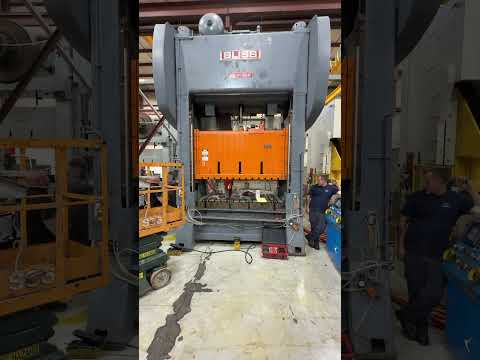

400 Ton Bliss Straight Side Twin end Backshaft Driven Mechanical Press
Straight Side Mechanical Stamping Presses400 Ton Bliss, Model#: SC2-400-84-48, 84" x 48" bed, 12" stroke, 25-50 SPM, 29.5" Shut Height, 10" Adjustment, Omnilink Press Control
Tonnage | 400 T |
Stroke | 12" |
Shut Height | 29.5" |
SPM | 0 strokes/min. |
Vari Speed (Yes/No) | Yes |
Bed W | 48" |
Bed L | 84" |
Crank (Single/Double) | Double |
Air Clutch (Yes/No) | Yes |
Slide Area | 84" x 48" |
Slide Adjustment | 10" |
Windows Width | 31" |
Year of Manufacture | 1986 |
Air Clutch and Brake
Air Counterbalances
T-Slotted Bolster and Ram
Trabon Recirculating Lubrication System
Omnilink 5000 Press Control
Floor Standing Press Control Console
8 Point Slide Guide System
Vibration Isolation Levelers
Single/Inch/Continuous
