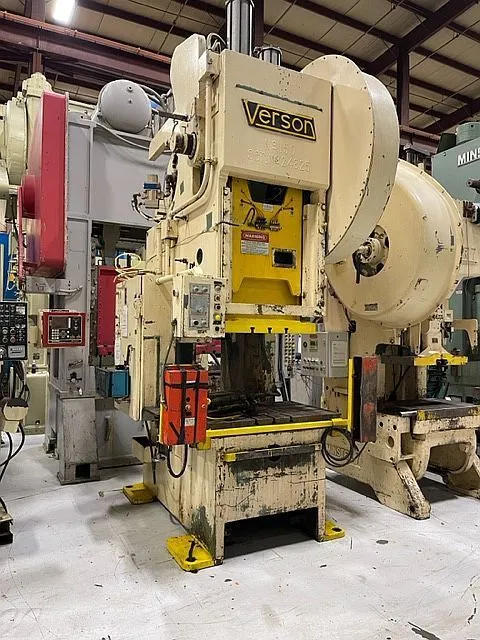

150 Ton Verson Single Point Gap Frame Mechanical Press
$59,500.00 USD
ConditionUsed
1 available
150 Ton Verson, 50" x 30" bed area, 8" stroke, 35 SPM, 22" Shut Height
Price includes mechanical reconditioning
Capacity.... ................................................. 150 Tons
Serial Number……………………………… 24825
Model Number……………………………... 150 Ton OBG
Bed Area........................................................ 50” x 30”
Slide Area………………………………….. 34” x 24”
Stroke............................................................. 8”
Adjustment..................................................... 6”
Shut Height.................................................... 22” SDAU
Bolster……………………………………… 4 ½” thick
Strokes per Minute......................................... 35
Overall Height……………………………… 13’9” floor to highest point of the press
Floor Standing
Air Clutch and Brake
Air Counterbalances
Dual Ross Air Valve
Link Logic 3000 System
Motorized Slide Adjustment
Single/Inch/Continuous Operation
Motors and Controls
Palm Buttons
T-Slotted Slide and Bolster
Lincoln Lubrication System
Power Requirements: 480 V/ 3 PH/60
